NSi - NSI IPL4-3CB Clr 4-14AWG Insltd MUL

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381368843

  • Applications - Splice,Tap

  • Buy American - Y

  • Catalog Number - IPL4-3CB

  • Color - Clear

Packaging

  • 1 ea

EAN

00662381368843

Part #

350920

Catalog #

IPL4-3CB

Commercial reference

IPL4-3CB

12-Digit UPC:

662381368843

Applications:

Splice,Tap

Buy American:

Y

Catalog Number:

IPL4-3CB

Color:

Clear

Country of Origin:

USA

ERP_productname:

NSI IPL4-3CB CLR 4-14AWG INSLTD MULTITP CONN 3PRT (SGLSDENT)

Family Brand Name:

Polaris

Finish:

Plastisol Insulated

Heights:

1.36 Inch

Length:

1.63 Inch

Material:

Aluminum

Voltage:

600 Volt

Widths:

1.24 in

SoneparProductId:

SKU_US_226419834

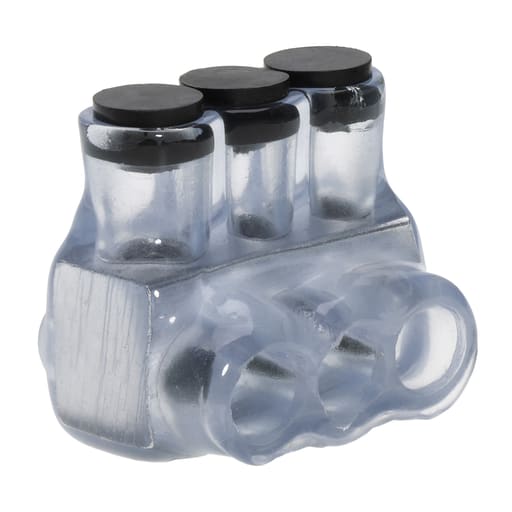

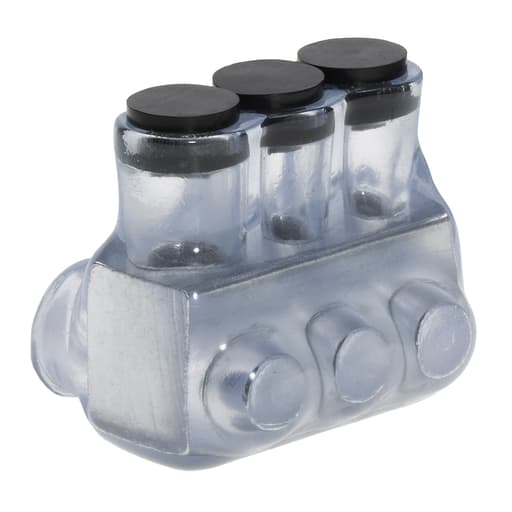

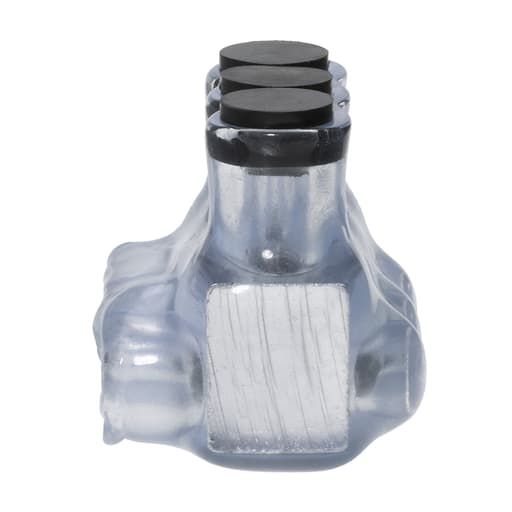

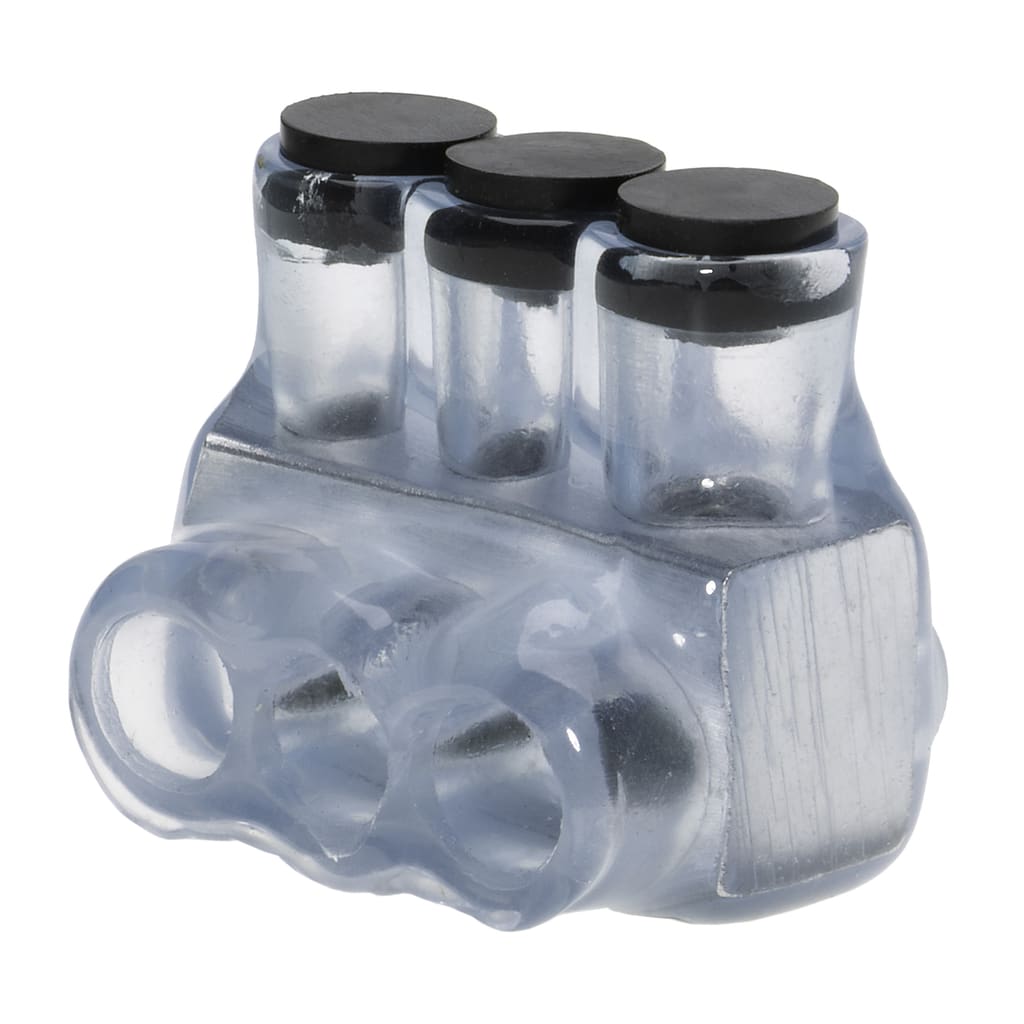

The Polaris IPL4-3CB Multi-Tap Single Side Entry Vision Tap Connector features 3 ports sized for 4 - 14 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs. Certifications and Standards: cULus; Meets NEC 230.46 Suitable for Line Side of Service; UL 486A/B - Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
