NSi - NSI ISPB2/0-3B POLARIS EDGE Conn 2/

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381800619

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - ISPB2/0-3B

  • Color - Black

Packaging

  • 1 ea

EAN

00662381800619

Part #

457247

Catalog #

ISPB2/0-3B

Commercial reference

ISPB2/0-3B

12-Digit UPC:

662381800619

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

ISPB2/0-3B

Color:

Black

Country of Origin:

USA

ERP_productname:

NSI ISPB2/0-3B POLARIS EDGE CONN 2/0 3 PORT EPDM BAG

Family Brand Name:

Polaris

Finish:

EPDM Rubber Insulated

Heights:

2.15 Inch

Material:

Aluminum

Number of Conductors:

3

Number of Poles:

1 Pole

Size:

L=2.79 - W=2.65 - H=2.10 IN

Sub Brand:

Polaris EDGE

Type:

Submersible Pedestal Connectors

Voltage:

600 Volt

Wire Size:

14-00 AWG

SoneparProductId:

SKU_US_287497961

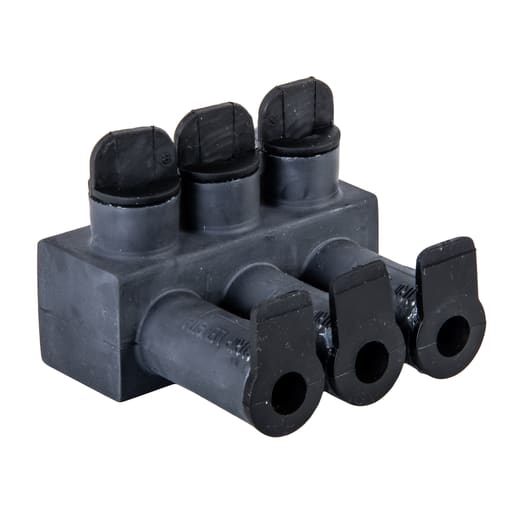

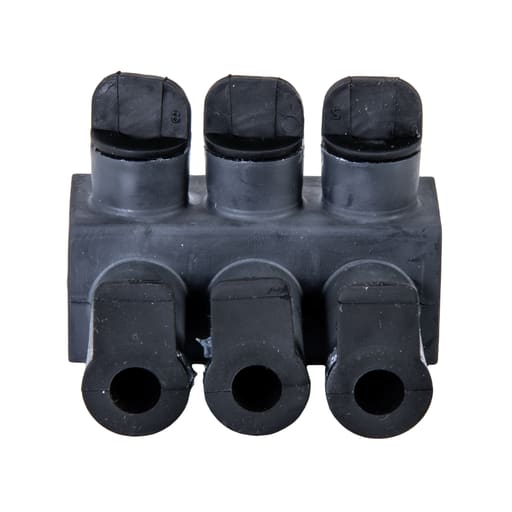

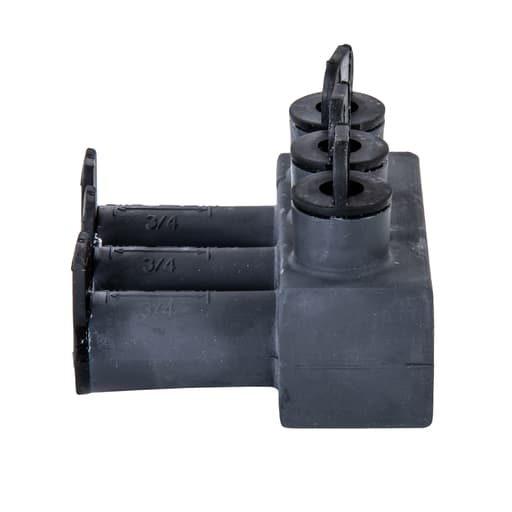

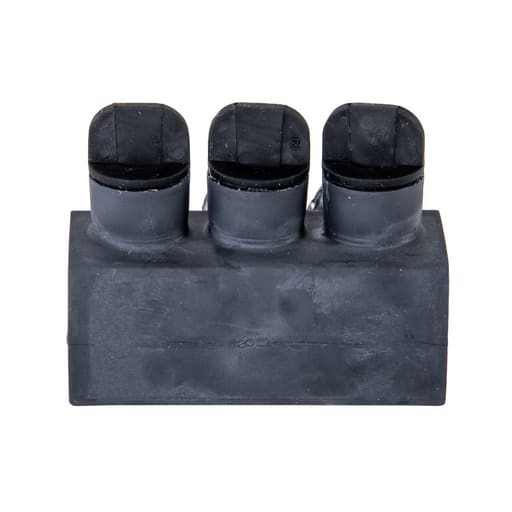

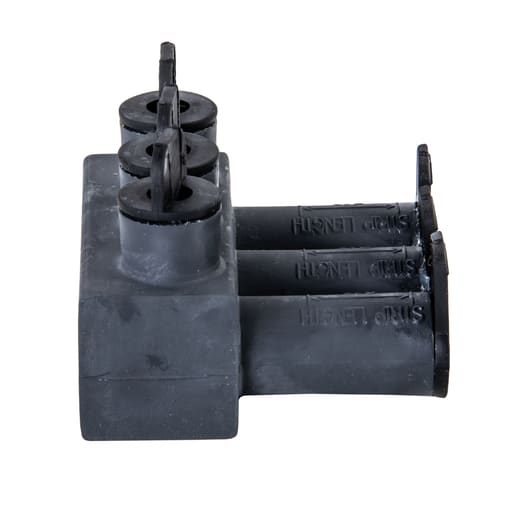

The Polaris ISPB2/0-3B Multi-Tap Direct Burial Single-Sided Entry Connector features 3 ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each single-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Rated for temporary submersion, wet or damp locations and direct burial applications. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL 486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications. Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables - Certifications and Standards: cULus; UL 486D
