NSi - NSI ISPBS2/0B POLARIS EDGE Conn 2/0

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381800626

  • Applications - Terminate Stranded Wire into European/Metric-Style Terminal Blocks

  • Buy American - Y

  • Catalog Number - ISPBS2/0B

  • Color - Black

Packaging

  • 1 ea

EAN

00662381800626

Part #

353607

Catalog #

ISPBS2/0B

Commercial reference

ISPBS2/0B

12-Digit UPC:

662381800626

Applications:

Terminate Stranded Wire into European/Metric-Style Terminal Blocks

Buy American:

Y

Catalog Number:

ISPBS2/0B

Color:

Black

Country of Origin:

USA

ERP_productname:

NSI ISPBS2/0B POLARIS EDGE CONN 2/0 SPLICE EPDM BAG

Family Brand Name:

Polaris

Finish:

EPDM Rubber Insulated

Heights:

2.1 Inch

Length:

5.05 Inch

Material:

Rubber

Number of Conductors:

2

Number of Poles:

1 Pole

Size:

L=.880 - W=5.05 - H=2.10 IN

Sub Brand:

Polaris EDGE

Type:

Submersible Pedestal Connectors

Voltage:

600 Volt

Widths:

0.88 in

Wire Size:

14-00 AWG

SoneparProductId:

SKU_US_376887076

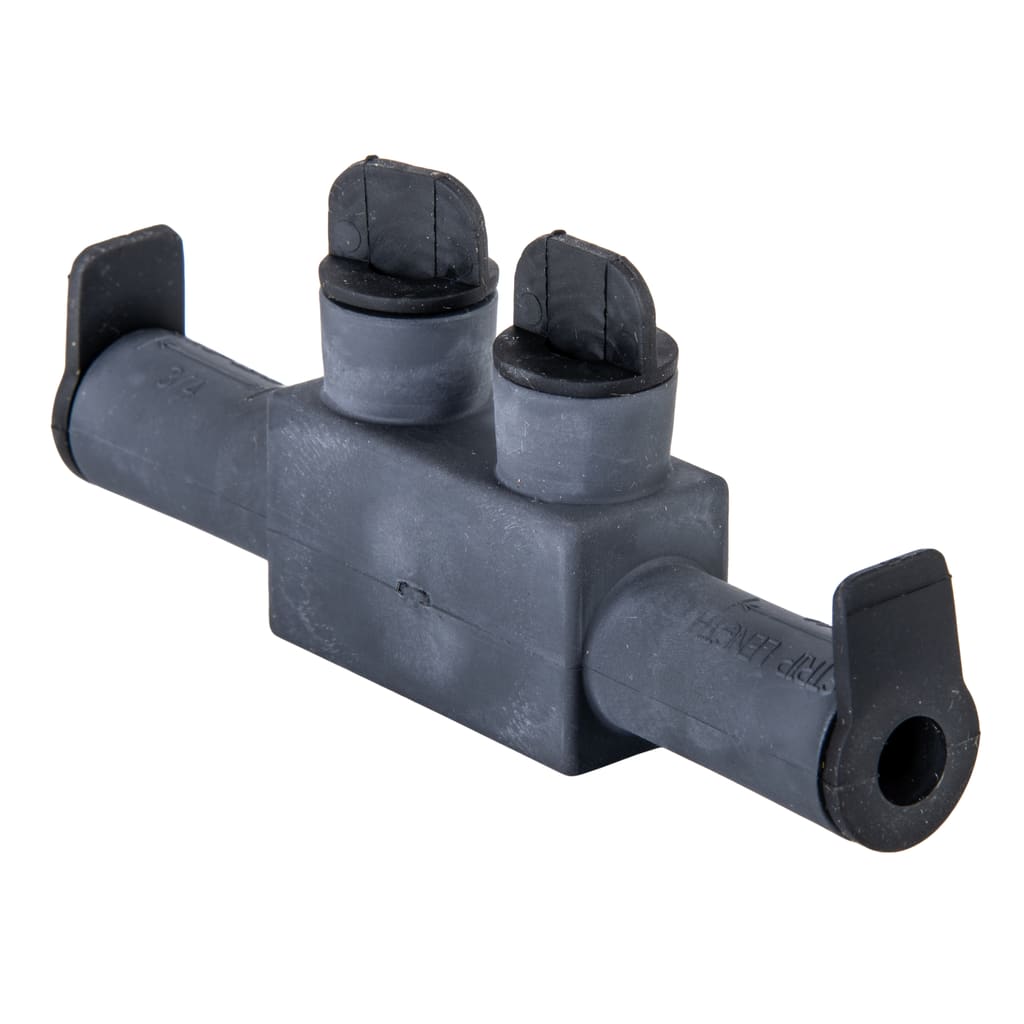

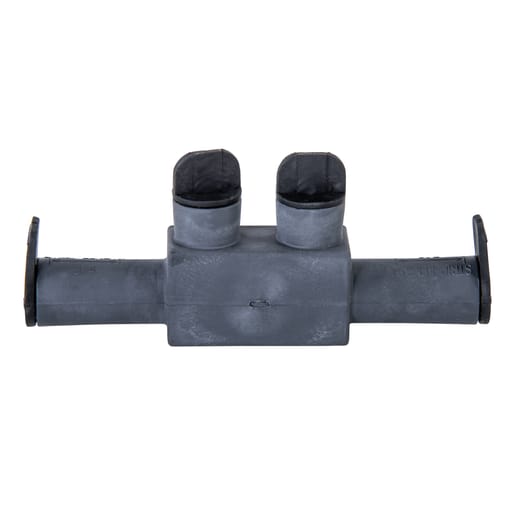

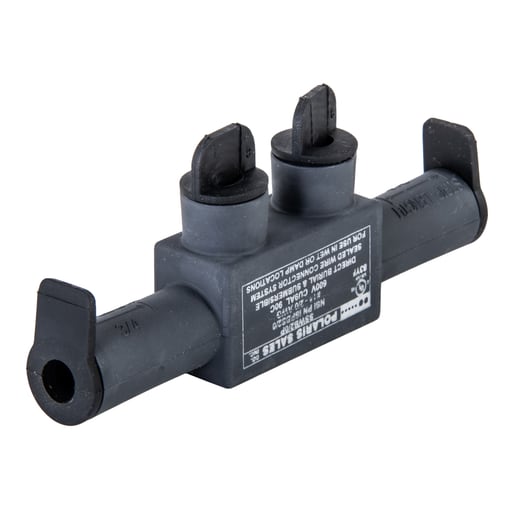

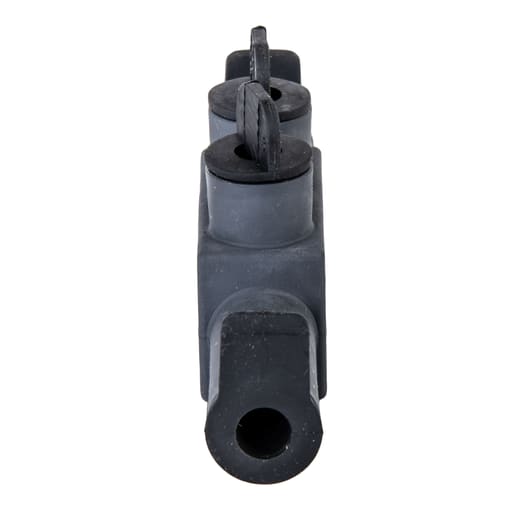

The Polaris ISPBS2/0B Multi-Tap Direct Burial Submersible In-Line Port Connector features 2 in-line ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications. Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables - Certifications and Standards: cULus; UL 486D
