NSi - NSI ITB20-12 INSULATED TERMINAL BLO
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381165213
Amperage - 10 Amp
Applications - Terminate Wire
Catalog Number - ITB20-12
Color - White
Packaging
1 ea
EAN
00662381165213
Part #
342049
Catalog #
ITB20-12
Commercial reference
ITB20-12
12-Digit UPC:
662381165213
Amperage:
10 Amp
Applications:
Terminate Wire
Catalog Number:
ITB20-12
Color:
White
Conductor Size:
20-18 AWG
Country of Origin:
China
ERP_productname:
NSI ITB20-12 INSULATED TERMINAL BLOCK, 20 AMP, 12 CIR
Family Brand Name:
NSI Industries
Heights:
0.57 Inch
Length:
3.787 Inch
Material:
Nylon
Mounting Type:
.114 Mounting Holes
Size:
L=3.787 - W=.669 - H=.570 IN
Sub Brand:
Terminal Blocks
Type:
Insulated
Voltage:
300 Volt
Widths:
0.669 in
Wire Size:
20-18 AWG
SoneparProductId:
SKU_US_71833326

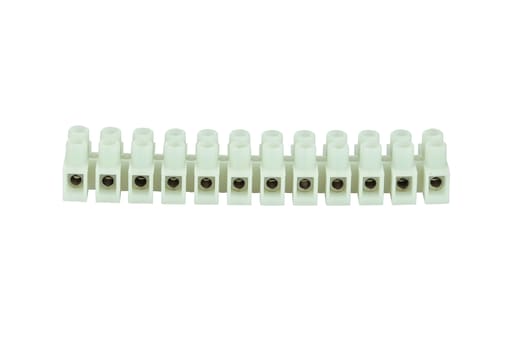

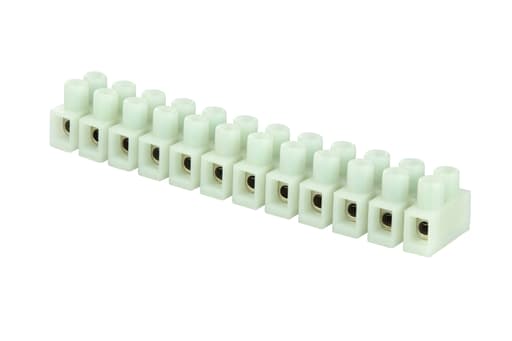

12 Circuit Insulated Terminal Block for wire range 22-12, rated RU, 20AMPS. "Touchproof" saety with recessed screws and tubular contacts. Cut into smaller sections or stack end to end. Nylon 66 housing, brass metal alloy with nickel plated terminal insert. Features: Nylon 66 housing ensures 'touchproof' safety, Brass metal alloy, nickel plated terminal insert, Zinc plated, yellow chromed screws; Recessed screws and tubular contacts provide additional safety and help prevent short circuits; Integrated stainless steel spring wire protectors prevent twisting and breaking of stranded wires during installation; Tubular contacts connect stripped solid or stranded un-terminated wire directly to each contact; Modular design allows for connector to be cut into smaller sections or stacked end-to-end - Certifications and Standards: CSA; UL Recognized; UL 94V-2
