NSi - NSI ITB35-12 Insulated Terminal Blo
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381165237
Amperage - 35 Amp
Applications - Terminate Wire
Catalog Number - ITB35-12
Color - White
Packaging
1 ea
EAN
00662381165237
Part #
235731
Catalog #
ITB35-12
Commercial reference
ITB35-12
12-Digit UPC:
662381165237
Amperage:
35 Amp
Applications:
Terminate Wire
Catalog Number:
ITB35-12
Color:
White
Conductor Size:
22-10 AWG
Country of Origin:
China
ERP_productname:
NSI ITB35-12
Family Brand Name:
NSI Industries
Heights:
0.748 Inch
Length:
5.54 Inch
Material:
Nylon
Mounting Type:
.154 Mounting Holes
Size:
L=5.54 - W=.937 - H=.748 IN
Sub Brand:
Terminal Blocks
Type:
Insulated
Voltage:
300 Volt
Widths:
0.937 in
Wire Size:
22-10 AWG
SoneparProductId:
SKU_US_57912742

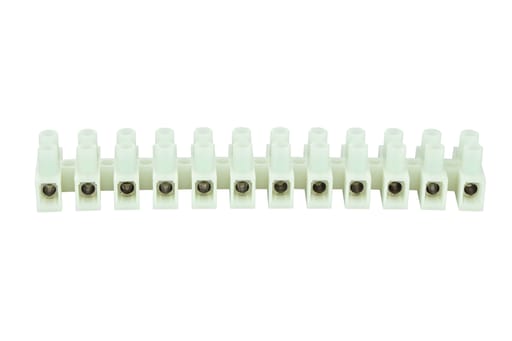

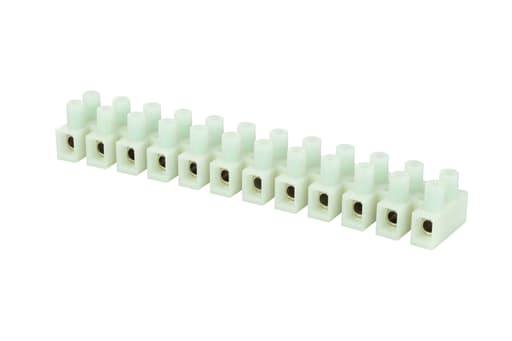

Terminal Block Insulated 35A 12 Circuit 22-10 AWG Certifications and Standards: CSA; UL Recognized; UL 94V-2 - Features: Nylon 66 housing ensures 'touchproof' safety, Brass metal alloy, nickel plated terminal insert, Zinc plated, yellow chromed screws; Recessed screws and tubular contacts provide additional safety and help prevent short circuits; Integrated stainless steel spring wire protectors prevent twisting and breaking of stranded wires during installation; Tubular contacts connect stripped solid or stranded un-terminated wire directly to each contact; Modular design allows for connector to be cut into smaller sections or stacked end-to-end
