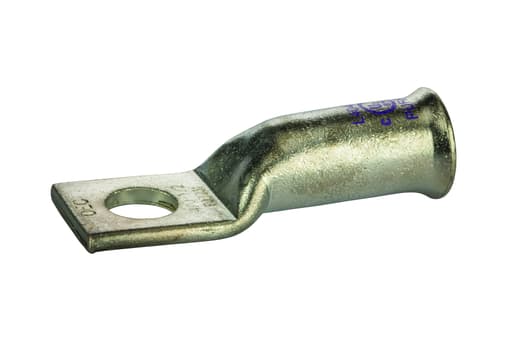

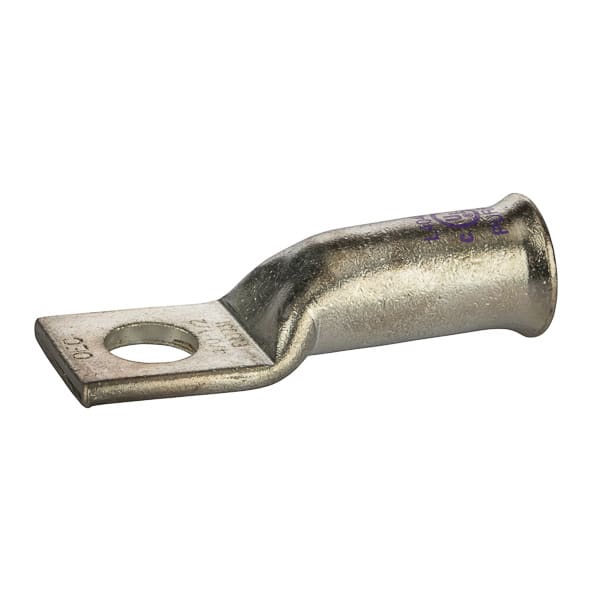

NSi - NSI L4048B 1/2 Inch 4/0 AWG Purple Copper Belled End Long Barrel 1-Hole Compression Connector

1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 4/0 AWG - 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole. Features: Connector end has a gentle, continuous flare to ensure ease of cable insertion of flexible and extra-flexible cables such as locomotive, welding, mining cable and more; The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement; Tin-plated for corrosion resistance; Wire connector rated for 35kV max; Class B/C compressed, concentric, and compact copper conductor only - Additional Notes: EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87 - Certifications and Standards: cULus; UL Listed; UL 486A - Related Products:
