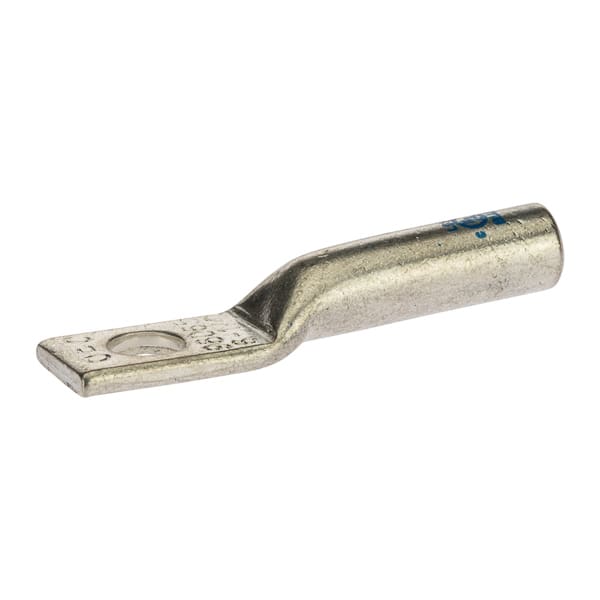

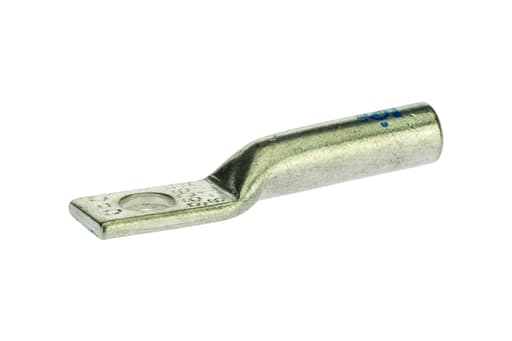

NSi - NSI L614 1/4 Inch 6 AWG Blue Copper Long Barrel 1-Hole Compression Connector

The NSI L614 Copper Compression Long Lug features a standard installation hole sized for 1/4. mounting bolts and a chamfered port to terminate a 6 AWG conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. The legible die index and blue color-coding make them easy to identify and they install easily with just a crimp tool. The closed barrel design is simple, reliably functional and sealed against moisture or contamination. When bonded, it creates a homogenous connection between the connector and conductor, forming a vibration-resistant, mechanically strong unit. Use for many applications including secondary power distribution in buildings, power plants, industrial applications or with electrical equipment. Features: Strong Conductivity - Produced from high-conductivity copper tubing; Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance; Die-Indexed - Marked with die index and color-coded blue; Strong Termination - Listed for 35 kV maximum when properly installed - Certifications and Standards: cULus; UL Listed; UL 486A-486B, UL467 - Additional Notes: UL listed to 35kV when properly installed to cable manufacturer.s specifications, Expanded wire range when installed with dieless NSi compression tool (N12ID), Dieless tools require only one crimp. Mechanical Crimper Tools: M-250 has max lugs size 250MCM, M-500 has max lug size 500MCM. See installation instructions for more details. - Related Products:
