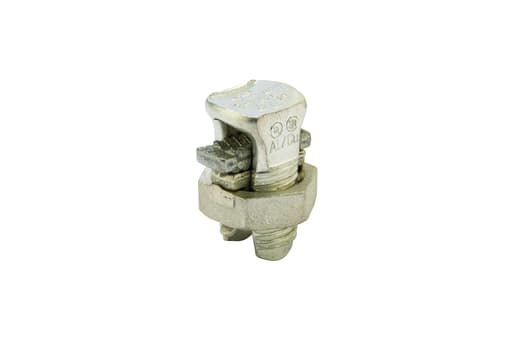

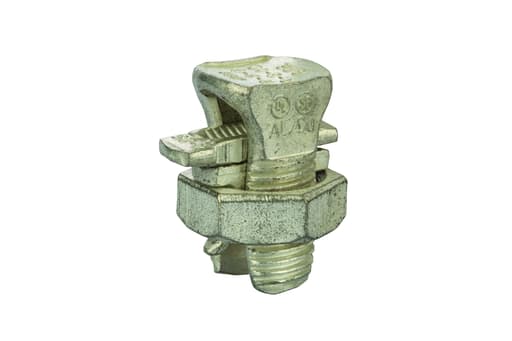

NSi - NSI N-4SP 4 AWG Tinned Copper 2-Conductor General Purpose Split Bolt Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381020338

  • Applications - Wire Termination

  • Catalog Number - N-4SP

  • Color - Tin Plated Copper

  • Conductor Size - 10-6 AWG

Packaging

  • 75 ea

EAN

00662381020338

Part #

428393

Catalog #

N-4SP

Commercial reference

N-4SP

12-Digit UPC:

662381020338

Applications:

Wire Termination

Catalog Number:

N-4SP

Color:

Tin Plated Copper

Conductor Size:

10-6 AWG

Country of Origin:

Brazil

ERP_productname:

NSI N-4SP SPLIT BOLT COPPER 4 TIN PLATED

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Length:

1.161 Inch

Material:

Copper

Number of Conductors:

2

Number of Poles:

1 Pole

Size:

L=1.161 - W=.708 IN

Sub Brand:

Split Bolts

Type:

Tin Plated Copper Split Bolt

Voltage:

600 Volt

Widths:

0.708 in

Wire Size:

10 STR-6 STR

SoneparProductId:

SKU_US_57942515

All Purpose Split Bolt Connector 4 AWG is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad. Features: Can be used Aluminum to copper (Dual Rated), Aluminum to aluminum, Steel to aluminum, Copper to copper, Steel to copper; Electro-tinned body; UL listed for copper and copperweld wires only; Includes nut, spacer and pressure pad; Tin-plated makes this connector highly resistant to corrosion - Certifications and Standards: UL Listed; UL 486A-486B, UL 486D
