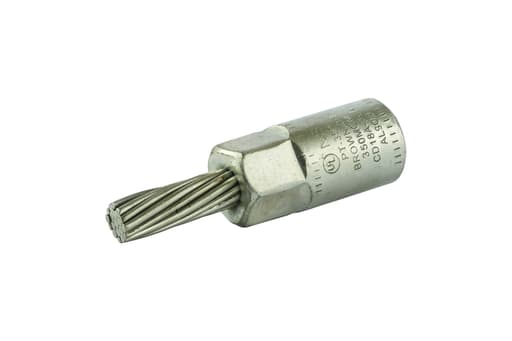

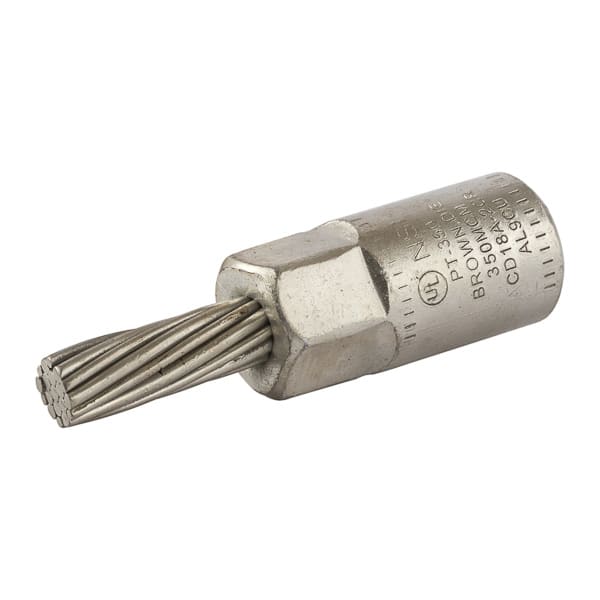

NSi - NSI PT350 350 MCM Brown Tinned Aluminum 1-Conductor Stranded Bi-Metallic Pin Terminal

Essential specifications

12-Digit UPC - 662381033109
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - PT350
Color - Brown
Conductor Size - 350 kcmil

Packaging

1 ea

EAN

00662381033109

Part #

202465

Catalog #

PT350

Commercial reference

PT350

12-Digit UPC:

662381033109

Applications:

Terminate, Splice, Tap Power Connectors

Catalog Number:

PT350

Color:

Brown

Conductor Size:

350 kcmil

Country of Origin:

India

ERP_productname:

NSI PT350 ALUMINUM PIN TERMINAL CU PIN 350 MCM

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.16 Inch

Length:

4.09 Inch

Material:

Aluminum

Number of Conductors:

Number of Poles:

1 Pole

Size:

L=4.08 - OD=1.15 - ID=.700 - Pin Dia=.496

Sub Brand:

Pin Terminals

Tc Connection:

4/0 Pin

Type:

Bi-Metallic Pin

Voltage:

600 Volt

Widths:

1.16 in

Wire Size:

350 kcmil

SoneparProductId:

SKU_US_26499272

Stranded Bi-Metallic Pin Terminal 350 MCM Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts. Features: Designed to facilitate termination of aluminum conductors; Pin - Stranded copper, tin plated; Supplied with EPDM insulating cover; Connector bores are coated with oxide inhibitor; Wire connector rated for 35kV max - Certifications and Standards: UL Listed; UL 486A-486B - Related Products:
