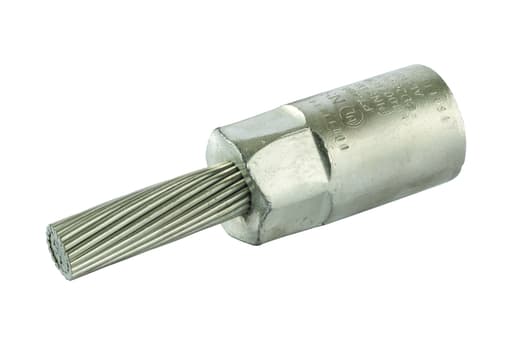

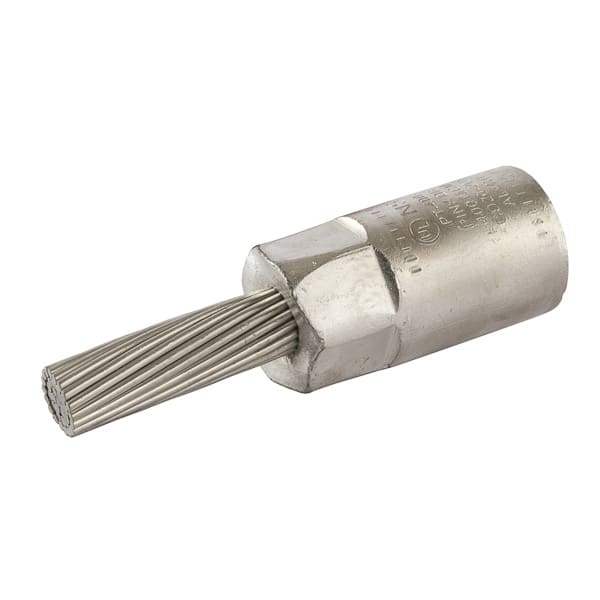

NSi - NSI PT400 400 MCM Pink Tinned Aluminum 1-Conductor Stranded Bi-Metallic Pin Terminal

Essential specifications

12-Digit UPC - 662381033116
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - PT400
Color - Pink
Conductor Size - 400 kcmil

Packaging

1 ea

EAN

00662381033116

Part #

345314

Catalog #

PT400

Commercial reference

PT400

12-Digit UPC:

662381033116

Applications:

Terminate, Splice, Tap Power Connectors

Catalog Number:

PT400

Color:

Pink

Conductor Size:

400 kcmil

Country of Origin:

India

ERP_productname:

NSI PT400 #400 PIN TERMINAL

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.3 Inch

Length:

4.36 Inch

Material:

Aluminum

Number of Conductors:

Number of Poles:

1 Pole

Size:

L=4.36 - OD=1.33 - ID=.759 - Pin Dia=.582

Sub Brand:

Pin Terminals

Tc Connection:

250 Pin

Type:

Bi-Metallic Pin

Voltage:

600 Volt

Widths:

1.3 in

Wire Size:

400 kcmil

SoneparProductId:

SKU_US_26850661

Stranded Bi-Metallic Pin Terminal 400 MCM Stranded Bi-Metallic Pin Terminal designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts. Features: Designed to facilitate termination of aluminum conductors; Pin - Stranded copper, tin plated; Supplied with EPDM insulating cover; Connector bores are coated with oxide inhibitor; Wire connector rated for 35kV max - Certifications and Standards: UL Listed; UL 486A-486B - Related Products:
