NSi - NSI PT500 Al Pin Terminal Cu Pin 50

Essential specifications

12-Digit UPC - 662381033123
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - PT500
Color - Pink
Conductor Size - 500 kcmil

Packaging

1 ea

EAN

00662381033123

Part #

240178

Catalog #

PT500

Commercial reference

PT500

12-Digit UPC:

662381033123

Applications:

Terminate, Splice, Tap Power Connectors

Catalog Number:

PT500

Color:

Pink

Conductor Size:

500 kcmil

Country of Origin:

India

ERP_productname:

NSI PT500 #500 PIN TERMINAL

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.33 Inch

Length:

4.19 Inch

Material:

Aluminum

Number of Conductors:

Number of Poles:

1 Pole

Size:

L=4.19 - OD=1.33 - ID=.759 - Pin Dia=.681

Sub Brand:

Pin Terminals

Tc Connection:

350 Pin

Type:

Bi-Metallic Pin

Voltage:

600 Volt

Widths:

1.33 in

Wire Size:

500 kcmil

SoneparProductId:

SKU_US_52801937

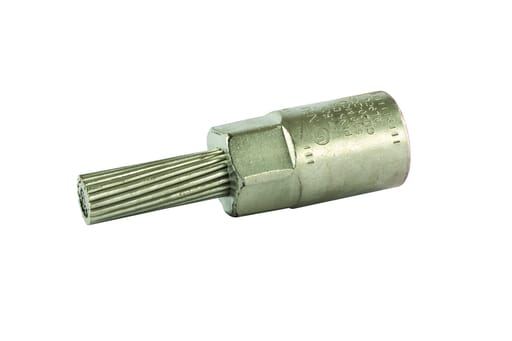

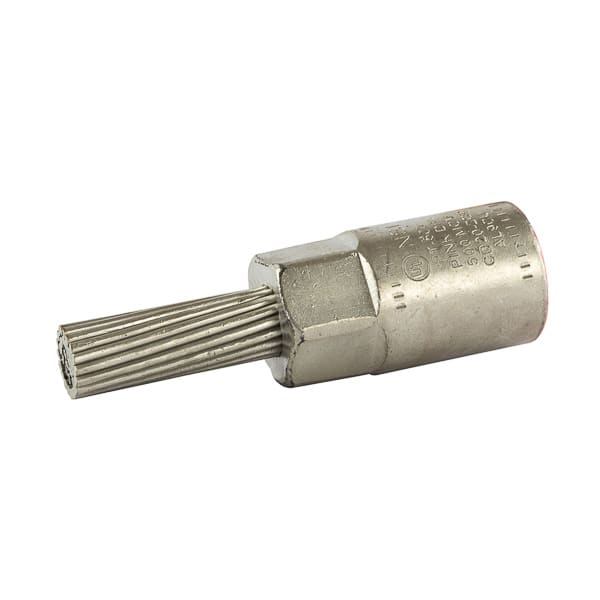

Stranded Bi-Metallic Pin Terminal 500 MCM Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts. Certifications and Standards: UL Listed; UL 486A-486B - Features: Designed to facilitate termination of aluminum conductors; Pin - Stranded copper, tin plated; Supplied with EPDM insulating cover; Connector bores are coated with oxide inhibitor; Wire connector rated for 35kV max - Related Products:
