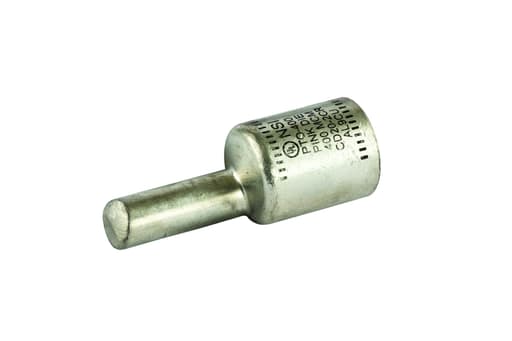

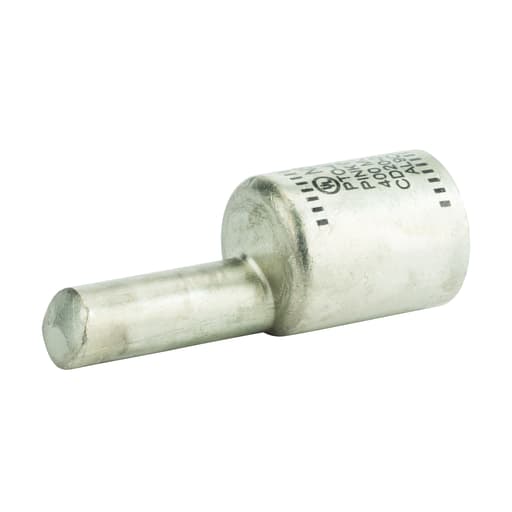

NSi - NSI PTO-400 400 MCM Pink Tinned Aluminum 1-Conductor Offset Pin Terminal

Essential specifications

12-Digit UPC - 662381033260
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - PTO-400
Color - Pink
Conductor Size - 400 kcmil

Packaging

1 ea

EAN

00662381033260

Part #

143839

Catalog #

PTO-400

Commercial reference

PTO-400

12-Digit UPC:

662381033260

Applications:

Terminate, Splice, Tap Power Connectors

Catalog Number:

PTO-400

Color:

Pink

Conductor Size:

400 kcmil

Country of Origin:

India

ERP_productname:

NSI PTO-400 ALUMINUM PIN TERMINAL AL PIN OS 400 MCM

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.31 Inch

Length:

3.39 Inch

Material:

Aluminum

Number of Conductors:

Number of Poles:

1 Pole

Size:

L=3.39 - OD=1.31 - ID=.763 - Pin Dia=.620

Sub Brand:

Pin Terminals

Tc Connection:

300 Pin

Type:

Offset Pin

Voltage:

600 Volt

Widths:

1.31 in

Wire Size:

400 kcmil

SoneparProductId:

SKU_US_58002384

Offset Pin Terminal 400 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts. Features: All-aluminum pin terminal designed for termination of both aluminum and copper conductors; Pin is offset for use in tight applications while providing ease of installation in side by side applications; The solid pin is made of aluminum and is Tin-plated and pre-filled with oxide inhibitor; Great for paralleling cable; A cover is provided for quick insulation - Certifications and Standards: UL Listed; UL 486A-486B - Related Products:

Product Spec Sheet

PDF
