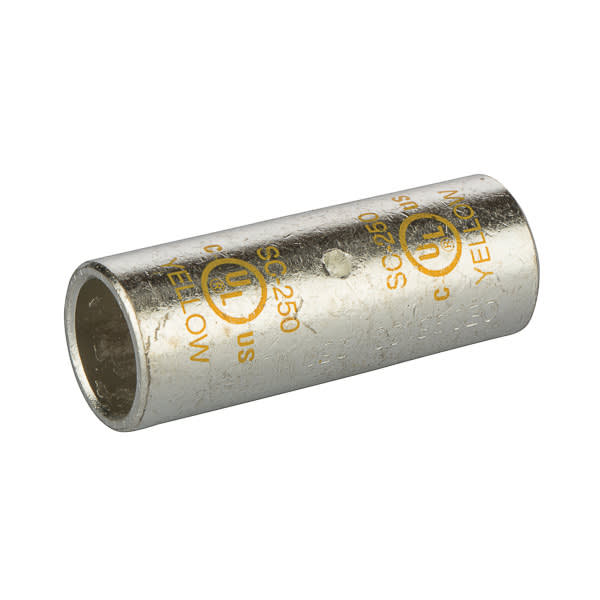

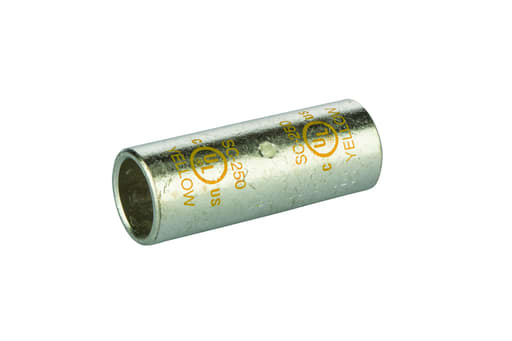

NSi - NSI SC-250 250 MCM Yellow Tinned Copper Standard Barrel 2-Conductor Compression Splice

StandardBarrel TinnedCopperSplice250MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed. Features: Produced from high conductivity copper tubing; Serrations indicate proper crimp locations; Tin-plated to provide corrosion resistance; Marked with die index and color coded; Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices - Certifications and Standards: cULus; UL Listed; UL 486A - Additional Notes: Max ampacity is based on NEC 310.15, insulation type, and conductor material. Please consult your current NEC manual; EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87 - Related Products:
