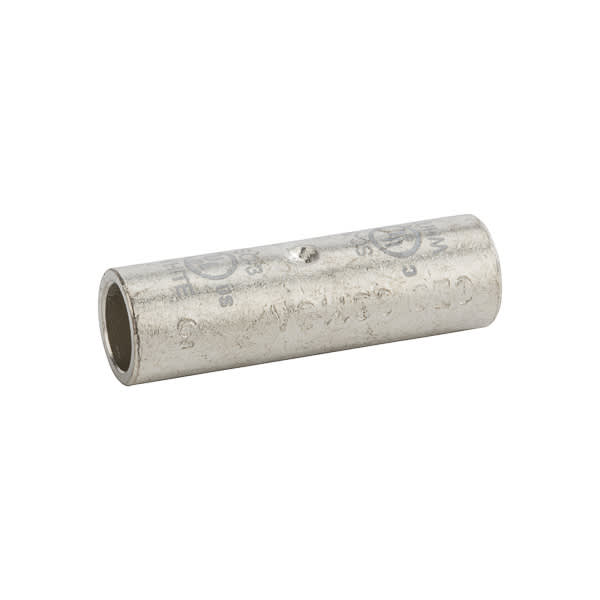

NSi - NSI SC-3 3 AWG White Tinned Copper Standard Barrel 2-Conductor Compression Splice
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381037039
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - SC-3
Color - White
Conductor Size - 3 AWG
Packaging
1 ea
EAN
00662381037039
Part #
270894
Catalog #
SC-3
Commercial reference
SC-3
12-Digit UPC:
662381037039
Applications:
Terminate, Splice, Tap Power Connectors
Catalog Number:
SC-3
Color:
White
Conductor Size:
3 AWG
Country of Origin:
India
ERP_productname:
NSI SC-3 #3 CU COMPRESSION SPLICE
Family Brand Name:
NSI Industries
Finish:
Tin Plated
Heights:
0.38 Inch
Length:
1-1/4 Inch
Material:
Copper
Number of Conductors:
2
Number of Poles:
1 Pole
Sub Brand:
Copper Compression
Type:
Short Barrel - CU Splice
Voltage:
600 Volt
Widths:
0.38 in
SoneparProductId:
SKU_US_57858232
StandardBarrel TinnedCopperSplice3 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed. Additional Notes: Max ampacity is based on NEC 310.15, insulation type, and conductor material. Please consult your current NEC manual; EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87 - Features: Produced from high conductivity copper tubing; Serrations indicate proper crimp locations; Tin-plated to provide corrosion resistance; Marked with die index and color coded; Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices - Certifications and Standards: cULus; UL Listed; UL 486A, UL 467 - Related Products:
