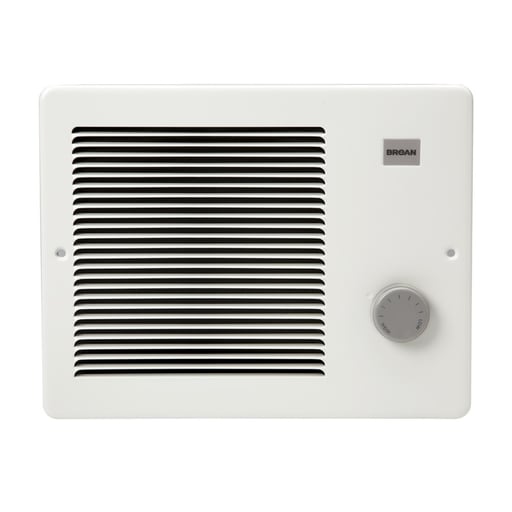

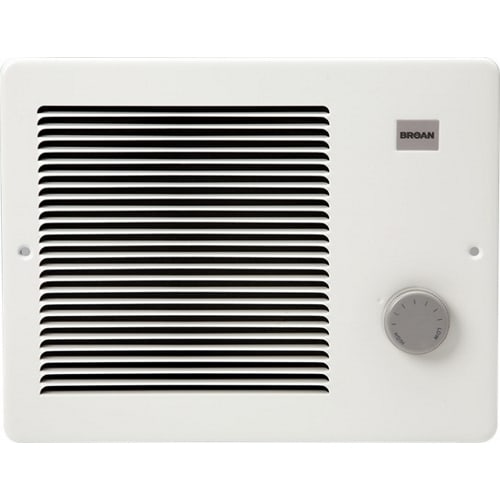

Nutone - Broan 174 12.5 Amp 120 Volt 1500 W 12 x 1/2 x 9-1/4 Inch White Grille Wall Heater

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 026715002573

  • Applications - For Bathrooms Or Other Areas Where You Want Added Warmth On Demand

  • Catalog Number - 174

  • ERP_productname - BRO 174 FAN FORCED WALL HTR

  • Family Brand Name - Broan-NuTone

Packaging

  • 1 ea

EAN

00026715002573

Part #

180091

Catalog #

174

Commercial reference

174

12-Digit UPC:

026715002573

Applications:

For Bathrooms Or Other Areas Where You Want Added Warmth On Demand

Catalog Number:

174

ERP_productname:

BRO 174 FAN FORCED WALL HTR

Family Brand Name:

Broan-NuTone

Mounting Type:

Recess/Surface,Wall Stud

Type:

Comfort-Flo

Voltage:

120/208/240 VAC

Wattage:

750/1500 Watt

SoneparProductId:

SKU_US_26016896

Wall Heater. 750/1500W+ 120VAC+, 1125W 208VAC, 1500W 240VAC. White painted grille. Features: White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability; Adjustable, front-mounted thermostat offers a simple way to control the level of heat; Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds; Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit); Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.; Also available in project packs (171H Rough-In Housing Kit, and 170F without thermostat or 170FT with thermostat Finish Kits) for the convenience of contractors working on multi-unit projects; Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home.s main heat source; Factory wired for 1000W at 120V AC.easily converts to 500W at 120V AC or 1000W at 240V AC; Factory wired for 1500W at 120V AC.easily converts to 750W at 120V AC or 1500W at 240V AC; Factory wired for 2000W at 240V AC.easily converts to 1000W at 240V AC
