Nutone - Broan ZB80 30 CFM to 80 CFM Energy Star Qualified Fan

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 026715201099

  • Amperage - 0.3 Amp

  • Applications - For Bathrooms

  • Catalog Number - ZB80

  • Color - White

Packaging

  • 1 ea

EAN

00026715201099

Part #

207732

Catalog #

ZB80

Commercial reference

ZB80

12-Digit UPC:

026715201099

Amperage:

0.3 Amp

Applications:

For Bathrooms

Catalog Number:

ZB80

Color:

White

Country of Origin:

China

ERP_productname:

BRO ZB80 ULTRA GREEN FAN .3 SONES WITH 6IN DUCT

Family Brand Name:

Broan-NuTone

Heights:

7-5/8 Inch

Length:

10-1/2 Inch

Motor Type:

DC Motor

Mounting Type:

Ceiling

Sub Brand:

UltraGreen

Type:

Multi-Speed, Rectangular Grille

Voltage:

120 Volt

Wattage:

5.8 Watt

Widths:

13.75 in

SoneparProductId:

SKU_US_25995840

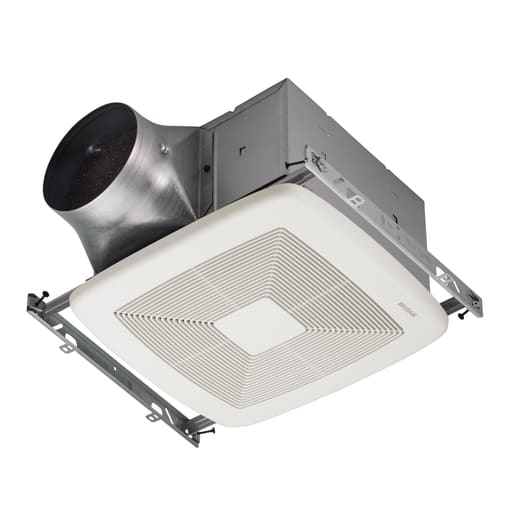

The Broan® ZB80 ULTRA GREEN™ Multi-Speed Ceiling Bath Fan gives a premium performance for today's demanding home ventilation requirements. 80 CFM quickly reduce humidity and manage moisture in bathrooms up to 75 sq. ft. ULTRASilent™ technology operates at the lowest sound rating achievable, less than 0.3 sones. The ULTRASmart DC motor and control technology provides energy efficiency almost 10 times greater than ENERGY STAR® requirements. With ULTRAQuick™ installation technology the ZB80 provides the fastest, easiest, and most universal installation in remodel, retrofit, and new construction. The Broan® ZB80 has been specifically designed to meet both spot and continuous ventilation needs for various building codes and green building standards. Features: 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths; <0.3 Sones for Ultra quiet performance, you might not notice it's on; ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws; Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fasters, easiest, most universal installation; Mounting Frame fits any type of joist, I-Joist or truss construction for a \"no guesswork\" installation to make the work fast and easy; ENERGY STAR® certified ventilation fan; UL listed and HVI-2100 Certified for safety; UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only); Title 24 compliant; Powerful enough for rooms up to 75 sq. ft.; Brighter white grilles blend in to match most common ceiling paint; Corrosion resistant galvanized steel housing stands up to moisture; Brushless DC electronically controlled digital motor is 3Xmore efficient than standard AC powered ventilation; Very quiet, energy efficient , multi-speed exhaust fan; Powerful enough for rooms (including bathroom) up to 75 sq. ft.; Easy to install and/or replace existing product for DIY'ers - Includes: 6\" to 4 \" duct reducer
