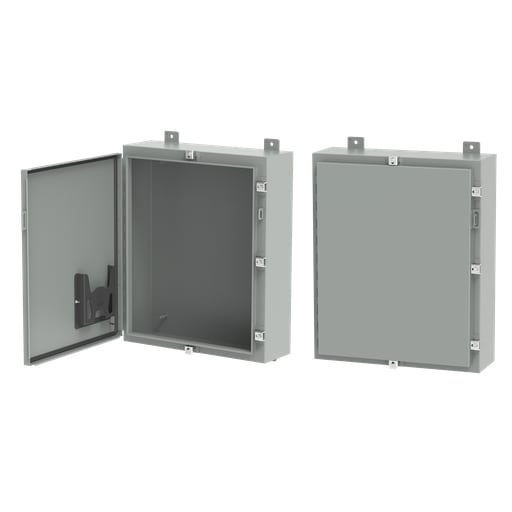

nVent Hoffman - Hoffman A20H20BLP Continuous Hinge with Clamps, Type 4, 20" x 20" x 8", Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510244309
Applications - For Indoor, Outdoor
Body Gauge - 16
Catalog Number - A20H20BLP
Color - Gray
Packaging
1 ea
EAN
00783510244309
Part #
181388
Catalog #
A20H20BLP
Commercial reference
A20H20BLP
12-Digit UPC:
783510244309
Applications:
For Indoor, Outdoor
Body Gauge:
16
Catalog Number:
A20H20BLP
Color:
Gray
Depths:
203 mm
ERP_productname:
HOFF A20H20BLP 8-IN DEEP NEMA4 ENC MFG ITEM 24430
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
508 mm
Length:
25 Inch
Material:
Steel
Mounting Type:
Wall
Size:
20.00x20.00x8.00 in
Sub Brand:
Hoffman
Type:
Gangable, Single Door, Four Lock
Widths:
508 mm
SoneparProductId:
SKU_US_58121786
These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications. Features: Seams continuously welded and ground smooth; External wall-mounting brackets for easy installation; Formed external flanges around all sides of enclosure opening; Stainless steel screw-down clamps on three sides of door; Removable heavy gauge stainless steel continuous hinge pin; Removable door with continuous hinge for strength and ruggedness; Hasp and staple provided for padlocking; Data pocket is high-impact thermoplastic; Collar studs for mounting optional panels; Bonding provision on door; Seamless foam-in-place gasket
