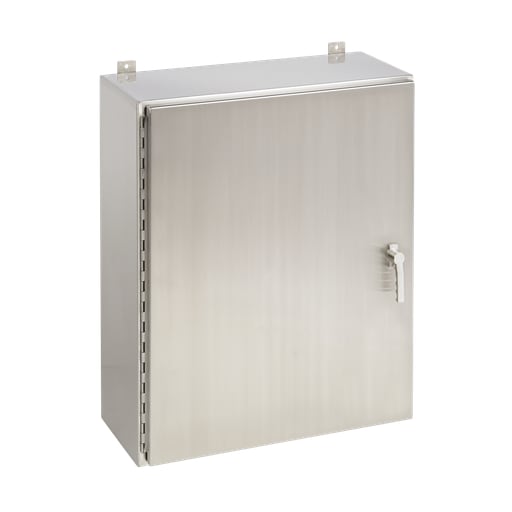

nVent Hoffman - Hoffman A30H2412SSLP3PT Continuous Hinge with 3-Point Latch, Type 4X, 30" x 24" x 12", SS Type 304

CopyCopy
nVent Hoffman - Hoffman A30H2412SSLP3PT Continuous Hinge with 3-Point Latch, Type 4X, 30" x 24" x 12", SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510143121

  • Applications - For Indoor or Outdoor use that Require Corrosion Protection, Convenient Access and Padlocking Security

  • Catalog Number - A30H2412SSLP3PT

  • Color - Stainless Steel

  • Depths - 305 mm

Packaging

  • 1 ea

EAN

00783510143121

Part #

477915

Catalog #

A30H2412SSLP3PT

Commercial reference

A30H2412SSLP3PT

12-Digit UPC:

783510143121

Applications:

For Indoor or Outdoor use that Require Corrosion Protection, Convenient Access and Padlocking Security

Catalog Number:

A30H2412SSLP3PT

Color:

Stainless Steel

Depths:

305 mm

ERP_productname:

HOFF A30H2412SSLP3PT 304SS WALL MT TYPE 4X 3 PT

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

760 mm

Length:

34-1/2 Inch

Material:

Stainless Steel

Mounting Type:

Wall

Size:

30.0024.00x12.00 in

Sub Brand:

Hoffman

Type:

Single Lock, Single Door

Widths:

610 mm

SoneparProductId:

SKU_US_58060206

These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security. Features: Seams continuously welded and ground smooth; Seamless foam-in-place gasket; Rolled lip around three sides of door; Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle; Remove door by pulling stainless steel continuous hinge pin; Data pocket is high-impact thermoplastic; Collar studs provided for mounting optional panels; Exterior hardware on Type 316L stainless steel enclosures matches enclosure material; Bonding provision on door; grounding stud on body
