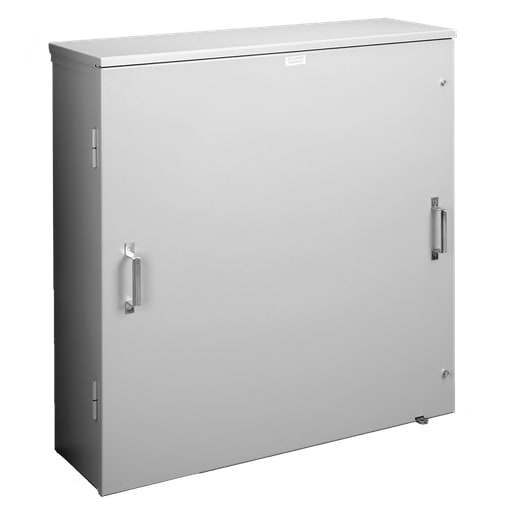

nVent Hoffman - Hoffman A363611HCT 36 x 36 x 11 Inch 12 Gauge Galvanized Steel NEMA 3R Current Transformer Hinge Cover Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510427399
Applications - Controls and Drives; Power Distribution
Catalog Number - A363611HCT
Color - Gray
Depths - 11 Inch
Packaging
1 ea
EAN
00783510427399
Part #
112230
Catalog #
A363611HCT
Commercial reference
A363611HCT
12-Digit UPC:
783510427399
Applications:
Controls and Drives; Power Distribution
Catalog Number:
A363611HCT
Color:
Gray
Depths:
11 Inch
ERP_productname:
HOFF A363611HCT CT ENCLOSURE MFG ITEM 42739
Enclosure:
3R
Family Brand Name:
nVent Hoffman
Finish:
Galvanized
Heights:
13-3/4 Inch
Length:
39-1/2 Inch
Material:
Steel
Size:
36.00x36.00x11.00 in
Sub Brand:
Hoffman
Type:
Utility / Canadian Cabinets and Splitters
Widths:
36 in
SoneparProductId:
SKU_US_58047668
CT Cabinet Hinged-Cover, Type 3R provide outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, transformer, relay or terminal assemblies. Features: Drip shield top and seam-free sides, front and back; Mounting holes on back of enclosure; Mounting studs are provided on the enclosure body; Cover is removable in the open position; Door handles provided; Provisions for padlocking; No gasketing or knockouts; Ground lug; Mounting provisions for optional door stop; Enclosures are finished with paint over plated surfaces
