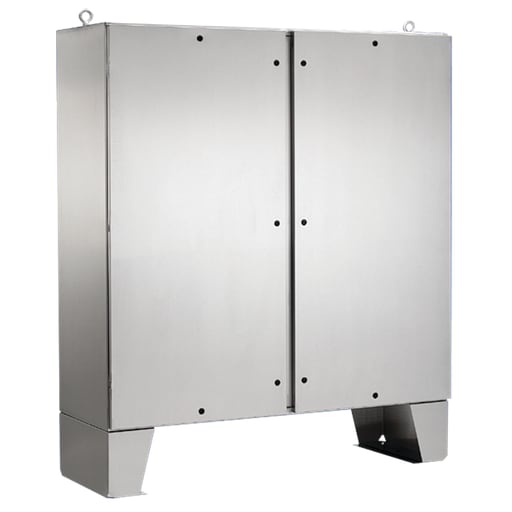

nVent Hoffman - Hoffman A72H7218SSLPQT General Purpose Two-Door with Quarter-Turn Latches and Floor Stands, Type 4X, 72.06" x 72.06" x 18.06", SS Type 304

CopyCopy
nVent Hoffman - Hoffman A72H7218SSLPQT General Purpose Two-Door with Quarter-Turn Latches and Floor Stands, Type 4X, 72.06" x 72.06" x 18.06", SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510137236

  • Applications - For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present

  • Catalog Number - A72H7218SSLPQT

  • Color - Unpainted

  • Depths - 18.06 Inch

Packaging

  • 1 ea

EAN

00783510137236

Part #

138596

Catalog #

A72H7218SSLPQT

Commercial reference

A72H7218SSLPQT

12-Digit UPC:

783510137236

Applications:

For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present

Catalog Number:

A72H7218SSLPQT

Color:

Unpainted

Depths:

18.06 Inch

ERP_productname:

HOFF A72H7218SSLPQT SS TWO DR TYPE 4X ENCLOSURE MFG ITEM 13723

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

72.06 Inch

Length:

84 Inch

Material:

Stainless Steel

Size:

72.06x72.06x18.06 in

Sub Brand:

Hoffman

Type:

Smooth Barrel, Cylindrical

Widths:

36.00 in

SoneparProductId:

SKU_US_57897070

This two-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Features: Floor-standing enclosure with 1/4 turn latching; Seams continuously welded and ground smooth; Flange trough collar on all four sides of door openings; Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants; Black die-cast quarter-turn latches with slotted insert provided on three sides of each door; Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area; Bolt-on 12-in.-high stainless steel floor stands; Heavy-duty Type 316L stainless steel lifting eyes; Collar studs on inside of enclosure back for mounting optional panels; Removable centerpost for easy panel installation; Bonding provisions on doors; grounding studs on body; Data pocket is high-impact plastic attached with pressure-sensitive adhesive; No interior stiffeners to obstruct component mounting; Accessory mounting channel provided in enclosure top
