nVent Hoffman - Hoffman A72HS2418SSLPQT General Purpose Single-Door Free-Stand with Quarter-Turn Latches, Type 4X, 72.13" x 24.06" x 18.1, SS Type 304

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510191658

  • Applications - Controls and Drives; Hygienic Environments; Power Distribution

  • Catalog Number - A72HS2418SSLPQT

  • Color - Unpainted

  • Depths - 18.06 Inch

Packaging

  • 1 ea

EAN

00783510191658

Part #

188278

Catalog #

A72HS2418SSLPQT

Commercial reference

A72HS2418SSLPQT

12-Digit UPC:

783510191658

Applications:

Controls and Drives; Hygienic Environments; Power Distribution

Catalog Number:

A72HS2418SSLPQT

Color:

Unpainted

Depths:

18.06 Inch

ERP_productname:

HOFF A72HS2418SSLPQT GP SS SINGLE DR, TYPE 4X MFG ITEM 19165

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

72.06 Inch

Length:

26-1/4 Inch

Material:

Stainless Steel

Size:

72.13x24.06x18.1 in

Sub Brand:

Hoffman

Type:

Smooth Barrel, Cylindrical

Widths:

22.00 in

SoneparProductId:

SKU_US_58184944

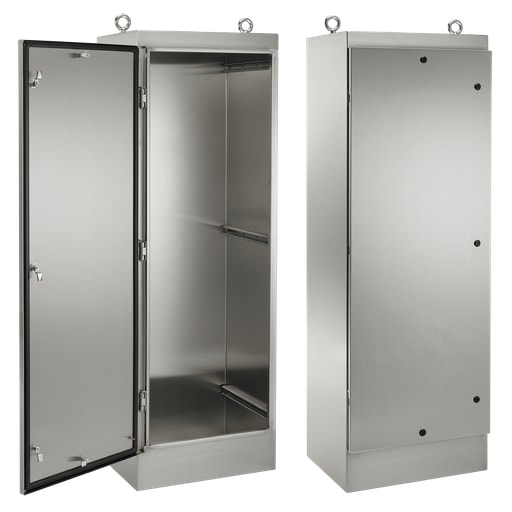

This single-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries. Features: Freestanding enclosure with quarter turn latching; Seams continuously welded and ground smooth; Flange trough collar on all four sides of door openings; Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants; Black die-cast quarter-turn latches with slotted insert provided on three sides of door; Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area; Heavy-duty Type 316L stainless steel lifting eyes; Internal accessory mounting channels welded horizontally to sides at top, bottom and center; High-impact plastic Data Pocket kit, attached with pressure-sensitive adhesive, is included with enclosure; Bonding provision on door; grounding stud on body; Accessory mounting channel provided in enclosure top
