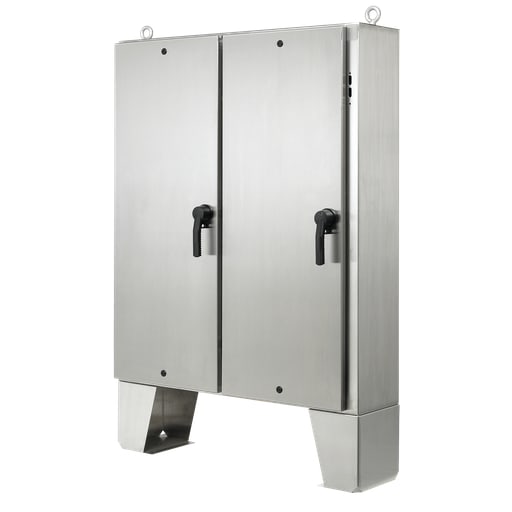

nVent Hoffman - Hoffman A72Hx 6112SSLPQT General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X, 72.06" x 61.31" x 12.06", SS Type 304

CopyCopy
nVent Hoffman - Hoffman A72Hx 6112SSLPQT General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X, 72.06" x 61.31" x 12.06", SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510145439

  • Applications - For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present

  • Catalog Number - A72HX6112SSLPQT

  • Color - Unpainted

  • Depths - 12.06 Inch

Packaging

  • 1 ea

EAN

00783510145439

Part #

176496

Catalog #

A72HX6112SSLPQT

Commercial reference

A72HX6112SSLPQT

12-Digit UPC:

783510145439

Applications:

For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present

Catalog Number:

A72HX6112SSLPQT

Color:

Unpainted

Depths:

12.06 Inch

ERP_productname:

HOFF A72HX6112SSLPQT SS 2-DR TYPE 4X DISC ENCL MFG ITEM 14543

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

72.06 Inch

Length:

68 Inch

Material:

Stainless Steel

Size:

72.06x61.31x12.06 in

Sub Brand:

Hoffman

Type:

Preferred Cutout

Widths:

30.00 in

SoneparProductId:

SKU_US_58150016

This disconnect enclosure is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Designed to house the most popular disconnect switches and circuit breakers. Features: 3 Point latching mechanism for simple, reliable one-motion closure; Seams continuously welded and ground smooth; Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants; Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle; Black die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door; Master door is far right-hand door on all enclosures; Master door handle provided with integral screwdriver defeater; Mechanical interlock activated by master door prevents slave door from being opened first; doors can be closed in any order; Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area; Bolt-on, 15-inch high stainless steel floor stands; Heavy-duty Type 316L stainless steel lifting eyes; Collar studs on inside of enclosure back for optional mounting panels; Removable centerpost for easy panel installation; Bonding provisions on doors and ground studs on body; No interior stiffeners to obstruct component mounting; Provisions for mounting optional fluorescent light package; Flange trough collar on all four sides of door openings; Data pocket is high-impact plastic attached with pressure-sensitive adhesive; Preferred cutout on right-hand flange provides mounting for most disconnect operator
