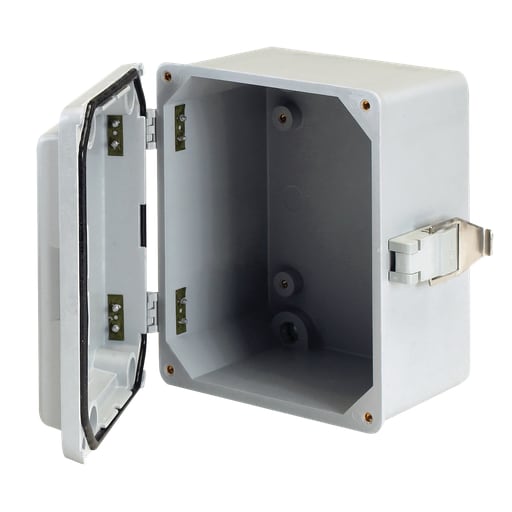

nVent Hoffman - Hoffman A845JFGR Screw- or Hinge-Cover with Quick-Release Latch, Type 4X, 7.5" x 4" x 4.94, Fiberglass

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510411404

  • Applications - Controls and Drives, Corrosive Environments

  • Catalog Number - A845JFGR

  • Color - RAL 7035 Light Gray

  • Depths - 127 mm

Packaging

  • 1 ea

EAN

00783510411404

Part #

274284

Catalog #

A845JFGR

Commercial reference

A845JFGR

12-Digit UPC:

783510411404

Applications:

Controls and Drives, Corrosive Environments

Catalog Number:

A845JFGR

Color:

RAL 7035 Light Gray

Depths:

127 mm

ERP_productname:

HOFF A845JFGR ENCLOSURE 8.00X4.00X5.00 MFG ITEM 41140

Family Brand Name:

nVent Hoffman

Heights:

203 mm

Length:

8-1/2 Inch

Material:

Fiberglass/Plastic

Mounting Type:

Wall

Size:

7.50x4.00x4.94 in

Sub Brand:

Hoffman

Type:

Single Door, Single Lock, Watertight, Corrosion-Resistant

Widths:

102 mm

SoneparProductId:

SKU_US_51759137

Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications. Features: Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties; Fiberglass material is easily punched, drilled, filed or sawed; Seamless foam-in-place gasket assures water-tight and dust-tight seal; Threaded internal bosses provided for mounting optional panels and terminal block kits; Scratch-resistant polycarbonate windows are permanently bonded in place; Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges; Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws; Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws; A Type 316L stainless steel padlock hasp is furnished with each enclosure; Sealing washers are furnished with enclosure
