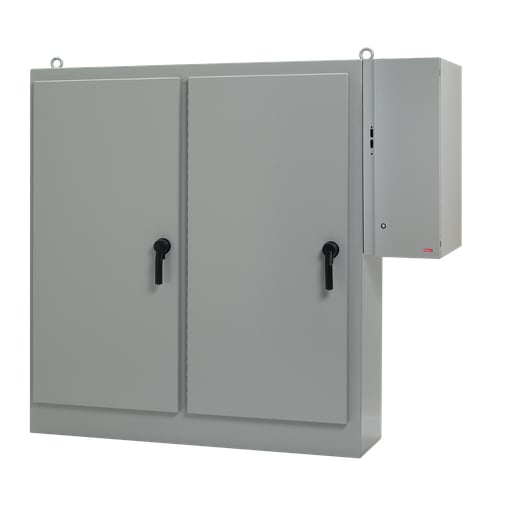

nVent Hoffman - Hoffman A84XD7818FTCLP 84.12 x 78.5 x 18.12 Inch Painted Steel NEMA 12 2-Door External Disconnect Enclosure

The Sequestr External Disconnect Enclosure Package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Shipped as one unit for new installations, the disconnect switch and fuse block/circuit breaker are mounted in the external enclosure, with terminal connections to bring power to the main enclosure. Features: Interlocks doors of main control cabinet when disconnect switch is powered ON; Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first; Provision for pass-through power into the main enclosure; Preferred disconnect cutout; Quarter-turn, screwdriver slot latch on Sequestr Enclosure; Rugged PowerGlide Handle with three-point latch on main control enclosure; Concealed, easy-to-remove hinges; Grounding studs on body; Bonding provision on door; Conductive back panel included in Sequestr External Disconnect Enclosure; Optional back panel for main control cabinet for maximum ordering flexibility; Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation; A28X base enclosure; A70D external disconnect enclosure; External disconnect enclosure is 16 gauge (.060-inch); main control cabinet is 11 gauge (.121-inch); Continuously welded and ground seams all around; Body flange trough excludes liquids and contaminants; Heavy duty lifting eyes anchored into reinforced top; Removable centerposts for easy back panel installation; No disconnect cutout on main control cabinet
