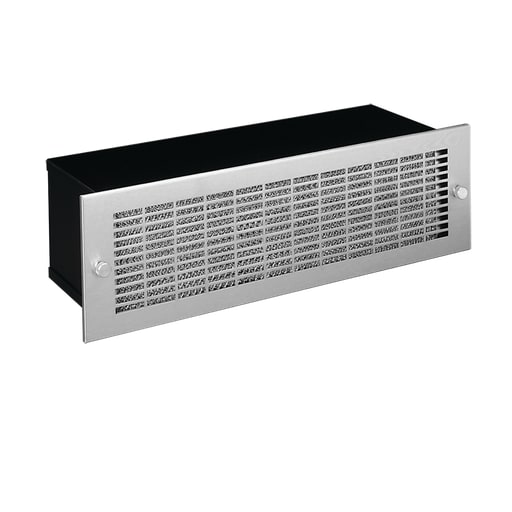

nVent Hoffman - Hoffman ADB275 Rack-Mountable Fan Package, 115v 50/60Hz
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510222703
Amperage - 1.2 Amp
Applications - Controls and Drives; Power Distribution
Catalog Number - ADB275
Depths - 7-1/4 Inch
Packaging
1 ea
EAN
00783510222703
Part #
451812
Catalog #
ADB275
Commercial reference
ADB275
12-Digit UPC:
783510222703
Amperage:
1.2 Amp
Applications:
Controls and Drives; Power Distribution
Catalog Number:
ADB275
Depths:
7-1/4 Inch
ERP_productname:
HOFF ADB275 115V,50/60HZ,84W,1.2A MFG ITEM 22270
Family Brand Name:
nVent Hoffman
Finish:
Brushed
Heights:
10-3/4 Inch
Length:
21-1/4 Inch
Material:
Stainless Steel
Max Current:
1.2 A
Motor Type:
AC Motor
Size:
5.75 x 19 x 7.25 in
Sub Brand:
Hoffman
Type:
Open-Loop Cooling
Voltage:
100 Volt
Widths:
19 in
SoneparProductId:
SKU_US_58217721
For enclosure or 19-inch rack applications, the Blower Fan Package provides the maximum amount of cooling air in the least amount of space by utilizing 115 volt AC, 60/50 hertz, single-phase input power. Features: Intake grille is easily removed with two captive thumbnuts; Washable aluminum filter; Single phase motor powers the statically balanced blower; Motor is thermally protected and cooled by incoming forced air; Direct drive induction motor contains permanently lubricated ball bearings; Lubricant protects from -20 F to 298 F (-29 C to 148 C); Rotating components are suspended on neoprene shock-mounts; Three-conductor power cord (five feet long); The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.; An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately; Grill is 20 gauge stainless steel 304 and the housing is 16 gauge mild steel
