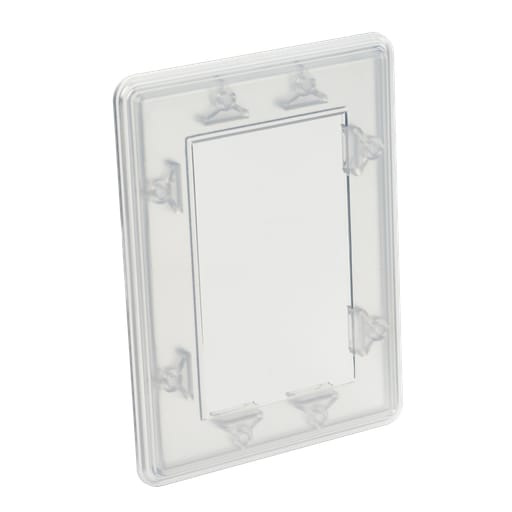

nVent Hoffman - Hoffman APWK53NFNM Steel, Stainless Steel and Non-Metallic Window Kits, 5" x 3", Polycarbonate

CopyCopy
nVent Hoffman - Hoffman APWK53NFNM Steel, Stainless Steel and Non-Metallic Window Kits, 5" x 3", Polycarbonate

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510271855

  • Applications - For Controls, Drives, Corrosive Environments, Power Distribution, Indoor and Outdoor Applications

  • Catalog Number - APWK53NFNM

  • Color - Transparent

  • Depths - 0.63 Inch

Packaging

  • 1 ea

EAN

00783510271855

Part #

484076

Catalog #

APWK53NFNM

Commercial reference

APWK53NFNM

12-Digit UPC:

783510271855

Applications:

For Controls, Drives, Corrosive Environments, Power Distribution, Indoor and Outdoor Applications

Catalog Number:

APWK53NFNM

Color:

Transparent

Depths:

0.63 Inch

ERP_productname:

HOFF APWK53NFNM WINDOW KIT 5.00X3.00 NONMET

Enclosure Rating:

3R, 4X, 12, 13, IP66

Enclosure Type:

NEMA 3R, 4X, 12, 13, IP66

Family Brand Name:

nVent Hoffman

Finish:

Transparent

Heights:

1-1/4 Inch

Length:

7.62 Inch

Material:

Polycarbonate

Size:

5.00x3.00 in

Sub Brand:

Hoffman

Type:

Non-Metallic

Widths:

5.62 in

SoneparProductId:

SKU_US_53184768

All Window kits are easy to install and require a simple rectangular enclosure cut-out. They are ideal for indoor and outdoor Type 3R, 4 and 12 applications. Stainless Steel Window Kits are ideal for indoor and outdoor Type 3R, 4X and 12 applications where corrosion is a concern. Non-Metallic Window Kits are ideal for indoor and outdoor Type 3R, 4, 4X and 12 applications. They are also ideal for non-metallic enclosures where exterior metallic materials are not allowed and can accommodate up to .25-in. enclosure material thickness. When determining if a window kit will fit in a door or cover, be sure to allow for gaskets, data pockets, door handles, latch rods and other parts attached to the door or cover. Features: Window kits of the same size use the same interchangeable cut-out; The gasket material on all windows is resistant to oils, cutting fluids and many other liquids; All required hardware is furnished, along with assembly and cut- out instructions; The clear window of the Steel and Stainless Steel Window Kit is made of .25-in. (6mm) impact-resistant polycarbonate material; Non-Metallic Window kit are made of a single piece polycarbonate material
