nVent Hoffman - Hoffman ATEMHUM Temp and Humidity Control 120VAC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510164478
Amperage - 10 Amp
Applications - For Controls and Drives, Power Distribution
Catalog Number - ATEMHUM
Color - Gray
Packaging
1 ea
EAN
00783510164478
Part #
147542
Catalog #
ATEMHUM
Commercial reference
ATEMHUM
12-Digit UPC:
783510164478
Amperage:
10 Amp
Applications:
For Controls and Drives, Power Distribution
Catalog Number:
ATEMHUM
Color:
Gray
Depths:
1.69 Inch
ERP_productname:
HOFF ATEMHUM TEMP AND HUMIDITY CONTROL MFG ITEM 16447
Family Brand Name:
nVent Hoffman
Finish:
Matte
Heights:
1-3/4 Inch
Length:
3.4 Inch
Material:
Plastic
Mounting Type:
DIN Rail
Size:
3.03 x 2.36 x 1.69 in
Sub Brand:
Hoffman
Type:
Cooling Accessories
Voltage:
120 Volt
Widths:
2.36 in
SoneparProductId:
SKU_US_57929313

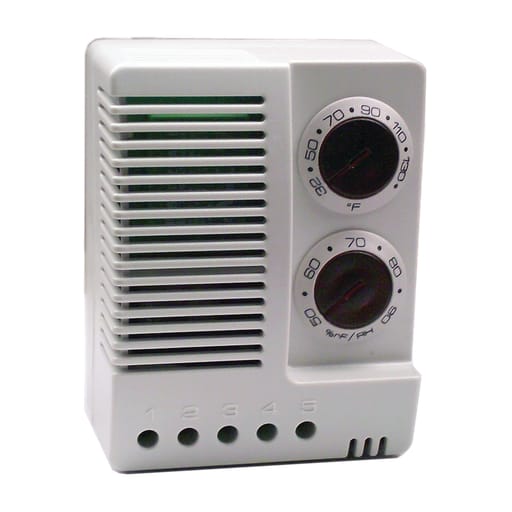

The Electronic Hygrotherm senses ambient temperature and relative air humidity and adjusts a connected device to maintain temperature and humidity set points. Features: Temperature (32-140 F) and humidity (50%-90% RH) adjustment; High switching capacity; Optical function displays (LED) in each control; Mounting clip for 35-mm DIN rail; Change-over contact (relay); Connection is a 5-pole terminal for AWG 14 max (2.5-mm square); clamping torque .5 Nm (4.4 in-lbs) maximum; Plastic housing UL94V-0; Vertical mounting; Operating voltage is AC 100-240 V with maximum switching capacity of 10 A resistive / 1.6 A inductive at AC 240 V
