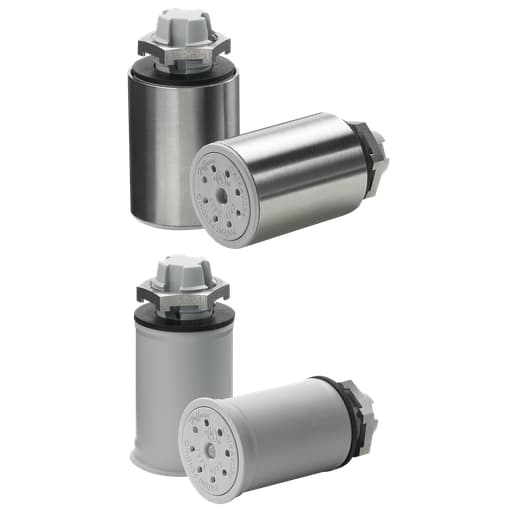

nVent Hoffman - Hoffman AVDR4SS4 H2OMIT Vent Drain, 2" x 1.38 OD, Stainless Steel

CopyCopy
nVent Hoffman - Hoffman AVDR4SS4 H2OMIT Vent Drain, 2" x 1.38 OD, Stainless Steel

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510177645

  • Applications - Controls and Drives; Hygienic Environments; Power Distribution

  • Catalog Number - AVDR4SS4

  • Depths - 1.38 Inch

  • ERP_productname - HOFF AVDR4SS4 VENT DRAIN TYPE 4 STAINLESS MFG ITEM 17764

Packaging

  • 1 ea

EAN

00783510177645

Part #

156279

Catalog #

AVDR4SS4

Commercial reference

AVDR4SS4

12-Digit UPC:

783510177645

Applications:

Controls and Drives; Hygienic Environments; Power Distribution

Catalog Number:

AVDR4SS4

Depths:

1.38 Inch

ERP_productname:

HOFF AVDR4SS4 VENT DRAIN TYPE 4 STAINLESS MFG ITEM 17764

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

1-1/2 Inch

Length:

4 Inch

Material:

Stainless Steel

Sub Brand:

H2omit

Type:

Cooling Accessories

Widths:

1.38 in

SoneparProductId:

SKU_US_59162871

H2Omit Vent Drains allow accumulated water to drain out the bottom of an enclosure. The UL-approved vent drains also function as an air pressure equalizer, reducing the harmful effects of temperature-induced vacuums that could pull water and moisture into the enclosure. Features: Uses gravity to remove collected liquids; One-way mechanical shut-off when pressure is equalized prevents water and contaminants from entering the enclosure; Helps reduce corrosion that can limit the life of internal electrical and electronic components; Installs in a 7/8-inch hole in the bottom of enclosure with provided nut or in a 1/2-inch NPT/NPS threaded conduit hub; Installs in the bottom of mild steel, aluminum, stainless steel or non-metallic enclosures; Maintains the enclosure UL Type rating when properly installed; Stainless Steel Vent Drain; Corrosion-resistant polyester material with a Type 304 stainless steel sleeve; Non-Metallic Drain Vent; Corrosion-resistant polyester material; 2.00-inch long x 1.25-inch outside diameter
