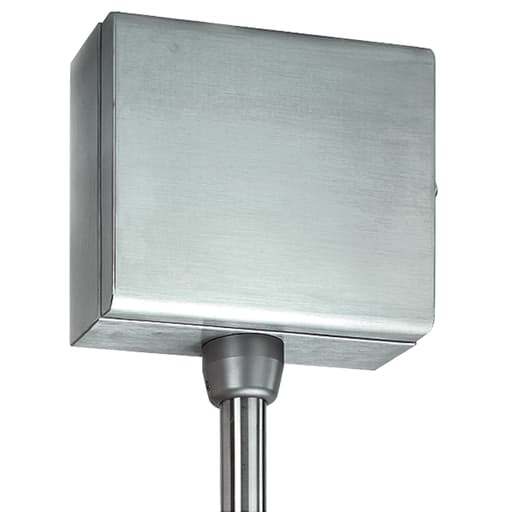

nVent Hoffman - Hoffman CCC48S303513 Stainless Steel HMI Enclosures, Type 4X, 300x 350x 130mm, SS Type 304
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510460198
Applications - Controls and Drives; Corrosive Environments
Catalog Number - CCC48S303513
Color - Unpainted
Depths - 5.12 Inch
Packaging
1 ea
EAN
00783510460198
Part #
147450
Catalog #
CCC48S303513
Commercial reference
CCC48S303513
12-Digit UPC:
783510460198
Applications:
Controls and Drives; Corrosive Environments
Catalog Number:
CCC48S303513
Color:
Unpainted
Depths:
5.12 Inch
ERP_productname:
HOFF CCC48S303513 OI ENCLOSURE, CS480 MOUNTING MFG ITEM 46019
Family Brand Name:
nVent Hoffman
Finish:
Brushed
Heights:
11.81 Inch
Length:
16 Inch
Material:
Stainless Steel
Size:
300x350x130mm
Sub Brand:
Compact
Type:
HMI Enclosure Systems
Widths:
13.78 in
SoneparProductId:
SKU_US_58033271
A favorite with the food and pharmaceutical industries, these stainless steel, front-door control enclosures are ideal for applications that require corrosion resistance and the suspension of process and control equipment for easy cleaning and washdown. Pre-drilled hole is included for quick mounting to various support arm systems from top or bottom position. Option to install a mounting plate to mount equipment on the rear of the enclosure. Pins are provided on the rear enclosure for easy installation. Features: Stainless steel safety latch mounted at side, away from protected space; Front door hinged on side; Optional mounting plate to install in the rear of the enclosure; Support arm system can be mounted from top or bottom; Polyurethane foam gaskets
