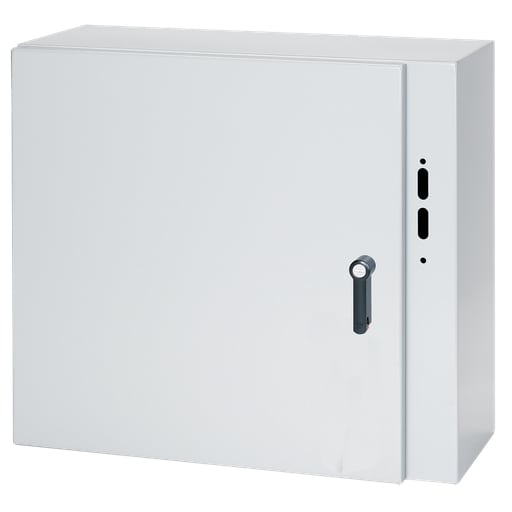

nVent Hoffman - Hoffman CDSC20228SS CONCEPT Disconnect Enclosure, Type 4X, 20" x 22" x 8", SS Type 304

Use Concept Disconnect Enclosures in applications that require a preferred cutout that accepts major brand disconnect switches and circuit breakers. Features: Disconnect model of Concept enclosure series, includes 3 point latching for closure.; Seams continuously welded and ground smooth; External-formed 90-degree body flange; Integral door ramp to properly align door and gasket to body flange; Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism; Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately); Mounting holes in back of body for direct mounting or for optional external mounting brackets; Stainless steel hidden hinges; Standard full-access door opening; Corner formed doors are interchangeable and easily removable by pulling captive hinge pins; Provisions on door for optional high-impact thermoplastic data pocket; Seamless foam-in-place gasket; Three-point door latching system installed on door interlocks with disconnect handle for added safety; Adjustable door interlock bracket fastened to door; Unique integrated door handle with tool-to-open feature and padlock option installed on door; Self-grounding latch system with double seal; Bonding provision on door; grounding stud on body
