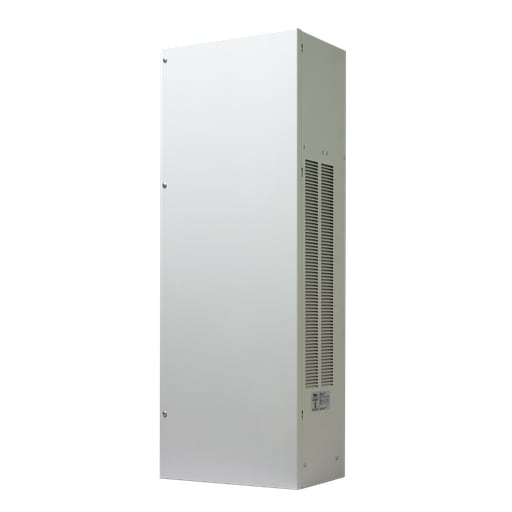

nVent Hoffman - Hoffman CR430616G002 ProAir Harsh Environment Air Conditioner, CR43 6,500 BTU, 115V, 50/60 HZ

CopyCopy
nVent Hoffman - Hoffman CR430616G002 ProAir Harsh Environment Air Conditioner, CR43 6,500 BTU, 115V, 50/60 HZ

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510193188

  • Amperage - 12.7 Amp

  • Applications - For Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense Systems

  • Catalog Number - CR430616G002

  • Color - RAL 7035 Light Gray/Semi-Textured Powder Coated

Packaging

  • 1 ea

EAN

00783510193188

Part #

220366

Catalog #

CR430616G002

Commercial reference

CR430616G002

12-Digit UPC:

783510193188

Amperage:

12.7 Amp

Applications:

For Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense Systems

Catalog Number:

CR430616G002

Color:

RAL 7035 Light Gray/Semi-Textured Powder Coated

Depths:

10-1/4 Inch

ERP_productname:

HOFF CR430616G002 CR43 6000 BTU 115V 50/60HZ 1PH MFG ITEM 19318

Enclosure Rating:

3R, 4, 12

Enclosure Type:

NEMA 12, 3R, 4

Family Brand Name:

nVent Hoffman

Finish:

Powder Coated

Heights:

43.31 Inch

Length:

17-3/4 Inch

Material:

Metal

Max Current:

12.7 A

Mounting Type:

Flange

Sub Brand:

ProAir™

Type:

Air Conditioners

Voltage:

115

Wattage:

1758 Watt

Widths:

13.50 in

SoneparProductId:

SKU_US_59267419

The ProAir Harsh Environment Air Conditioner protects components exposed in corrosive environments on the ambient side of the air conditioner. The unit has few fasteners and a hinged door for quick service and maintenance access. The smooth surface and optional hood provides protection from splashed water. Features: Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet; Smooth surface with minimal use of visible fasteners; Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance; R134a, R513A or R407C Refrigerant; Models for 115, 230 and 460 single phase VAC power input; Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package); Reliable mechanical thermostat located behind the filter of the unit; Robust reciprocating compressor; Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments; High-performance fans and blowers designed for densely packed enclosures; Easy-mount flanges for simple installation; Every unit functionally tested before shipping; Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor; Mounting hardware, gaskets and user manual furnished with the unit
