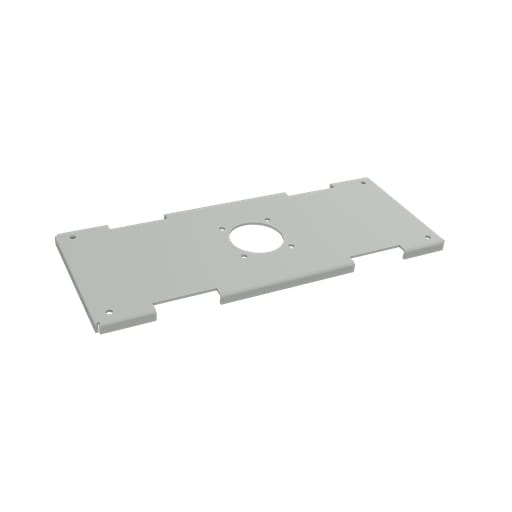

nVent Hoffman - Hoffman CSB180 Support Bracket, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510153113
Applications - Controls and Drives
Catalog Number - CSB180
Color - Gray
Depths - 6.69 Inch
Packaging
1 ea
EAN
00783510153113
Part #
152768
Catalog #
CSB180
Commercial reference
CSB180
12-Digit UPC:
783510153113
Applications:
Controls and Drives
Catalog Number:
CSB180
Color:
Gray
Depths:
6.69 Inch
ERP_productname:
HOFF CSB180 STL SUPP BRKT MFG ITEM 15311
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
1/2 Inch
Length:
17.3 Inch
Material:
Steel
Sub Brand:
Concept
Type:
HMI Enclosure Systems
Widths:
16.73 in
SoneparProductId:
SKU_US_57971227
Support Bracket for Concept HMI provides extra rigidity in 180-mm-deep enclosures that are either pendant- or pedestal-mounted. The bracket mounts in the top or bottom of the enclosure; drilling is required (drill points included on enclosure). The support bracket is not required for 120-mm-deep enclosures. Features: Mounting hardware is included
