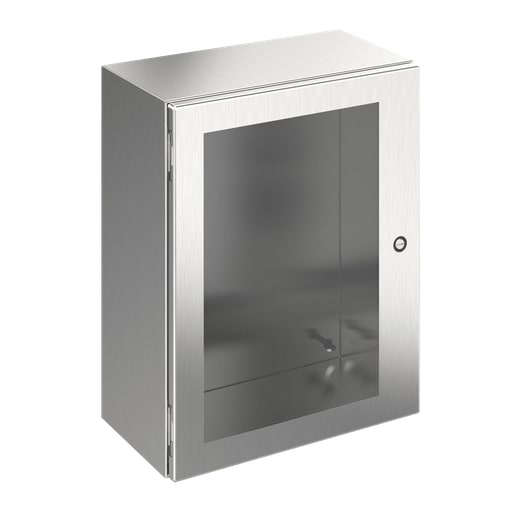

nVent Hoffman - Hoffman CSD161210WSS Stainless Steel CONCEPT Window-Door Enclosures, 16" x 12" x 10", SS Type 304

CopyCopy
nVent Hoffman - Hoffman CSD161210WSS Stainless Steel CONCEPT Window-Door Enclosures, 16" x 12" x 10", SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510128814

  • Applications - For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water

  • Body Gauge - 16

  • Catalog Number - CSD161210WSS

  • Color - Unpainted

Packaging

  • 1 ea

EAN

00783510128814

Part #

480109

Catalog #

CSD161210WSS

Commercial reference

CSD161210WSS

12-Digit UPC:

783510128814

Applications:

For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water

Body Gauge:

16

Catalog Number:

CSD161210WSS

Color:

Unpainted

Depths:

10 Inch

ERP_productname:

HOFF CSD161210WSS WALL MOUNT TYPE 4X WIN ENCL

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

16 Inch

Length:

21 Inch

Material:

Stainless Steel

Mounting Type:

Wall

Size:

16.00x12.00x10.00 in

Sub Brand:

Concept

Type:

One Door

Widths:

12 in

SoneparProductId:

SKU_US_58205054

For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Features: Window pre-mounted in door of enclosure.; Minimum-width body flange provides maximum body opening; External formed 90-degree body flange; Panel mounting studs fit optional Concept panels and other accessories; Mounting holes in back of body for direct mounting or for optional external mounting brackets; Type 316 stainless steel hidden hinges promote clean aesthetic appearance; Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins; Quarter-turn latches furnished with flush slotted insert; Seamless foam-in-place gasket; Self-grounding latch system with double seal; Bonding provision on door; grounding stud on body; Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole; Installation instructions; Clear polycarbonate window
