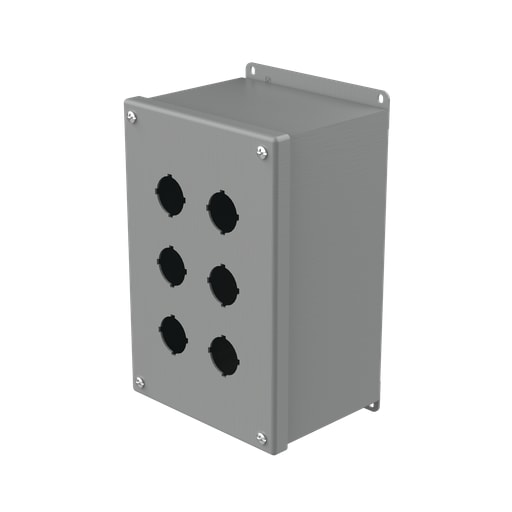

nVent Hoffman - Hoffman E6PBX Extra-Deep Pushbutton Enclosures, Type 12, 6PB x 30.5mm, Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510581701
Applications - For Push Buttons and Switches
Catalog Number - E6PBX
Color - Gray
Depths - 4-3/4 Inch
Packaging
1 ea
EAN
00783510581701
Part #
248290
Catalog #
E6PBX
Commercial reference
E6PBX
12-Digit UPC:
783510581701
Applications:
For Push Buttons and Switches
Catalog Number:
E6PBX
Color:
Gray
Depths:
4-3/4 Inch
ERP_productname:
HOFF E6PBX 6 PB ENCLOSURE 9.50X6.25X4.75 MFG ITEM 58170
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
9-1/2 Inch
Length:
10-1/2 Inch
Material:
Steel
Number of Holes:
6 Hole
Size:
6PB x 30.5mm
Sub Brand:
Hoffman
Type:
6-Hole, Extra Deep
Widths:
6.25 in
SoneparProductId:
SKU_US_58080601
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks. Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on cover; Grounding stud on body; Oil-resistant gasket; Factory stamped 4-way pushbutton holes; Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring; External welded-on mounting brackets for easy installation; 30.5-mm or 22.5-mm size holes
