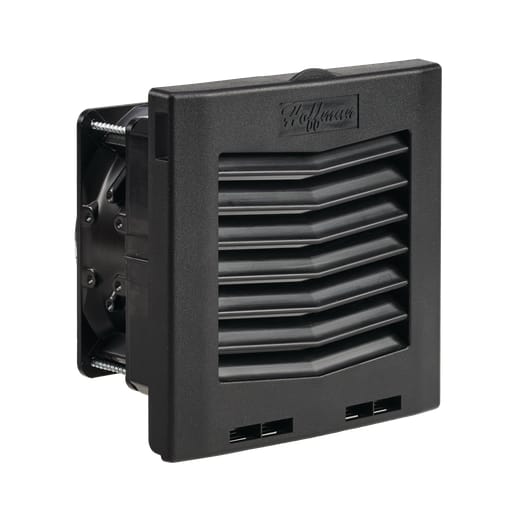

nVent Hoffman - Hoffman HF0516513 HF05 Side-Mount Filter Fan, 115V, 12 CFM, Black
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510342739
Amperage - 0.16/0.14 Amp
Applications - Controls and Drives; Power Distribution
Catalog Number - HF0516513
Color - Black
Packaging
1 ea
EAN
00783510342739
Part #
231688
Catalog #
HF0516513
Commercial reference
HF0516513
12-Digit UPC:
783510342739
Amperage:
0.16/0.14 Amp
Applications:
Controls and Drives; Power Distribution
Catalog Number:
HF0516513
Color:
Black
Depths:
3.98 Inch
ERP_productname:
HOFF HF0516513 IP55 5 IN FF 115V 9011 MFG ITEM 34273
Family Brand Name:
nVent Hoffman
Finish:
Black
Heights:
6.15 Inch
Length:
8.3 Inch
Material:
Plastic
Max Current:
0.16/0.14 A
Size:
6.15 x 6.16 x 3.98 in
Type:
Open-Loop Cooling
Voltage:
100 Volt
Widths:
6.16 in
SoneparProductId:
SKU_US_85090898
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement. Features: Click-Fit design quickly installs into enclosure wall; no tools or screws required; Opens with the flick of a finger for easy filter replacement; Enclosure side wall mounting; Reverse airflow option on HF13 models available to push/pull air through higher static pressure; Standard rope gasket provides proper seal to the enclosure; Similar cut-out sizes as other filter fan manufacturers; Terminal block connections; Optional thermostat available to save energy and extend service life; Hinged grille remains attached after opening; Size rage from 4 inch (102 mm) to 13 inch (325 mm); Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.); Service life hours from 40,000 to 100,000 hours; Operating temperature range of -4 F/-20 C to 149 F/65 C
