nVent Hoffman - Hoffman LEDD2M35 LED Light Kit, 1.54x 1.26x 13.82, Plastic

CopyCopy
nVent Hoffman - Hoffman LEDD2M35 LED Light Kit, 1.54x 1.26x 13.82, Plastic

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510260835

  • Applications - For Remote and Darkened Enclosure Application

  • Catalog Number - LEDD2M35

  • Color - Gray

  • Color Temperature - 6000 - 7000 K

Packaging

  • 1 ea

EAN

00783510260835

Part #

191623

Catalog #

LEDD2M35

Commercial reference

LEDD2M35

12-Digit UPC:

783510260835

Applications:

For Remote and Darkened Enclosure Application

Catalog Number:

LEDD2M35

Color:

Gray

Color Temperature:

6000 - 7000 K

Depths:

13.82 cm

ERP_productname:

HOFF LEDD2M35 LED LIGHT DC MOTION MEG 351MM MFG ITEM 26083

Enclosure Rating:

4X

Enclosure Type:

Type 4X

Family Brand Name:

nVent Hoffman

Finish:

Matte

Heights:

1.26 Inch

Length:

13.82 Inch

Material:

Plastic

Mounting Type:

Magnetic

Size:

1.54x1.26x13.82 in

Sub Brand:

PaneLite

Type:

IR Motion Sensor Activation

Voltage:

20 Volt

Widths:

1.54 in

SoneparProductId:

SKU_US_58053273

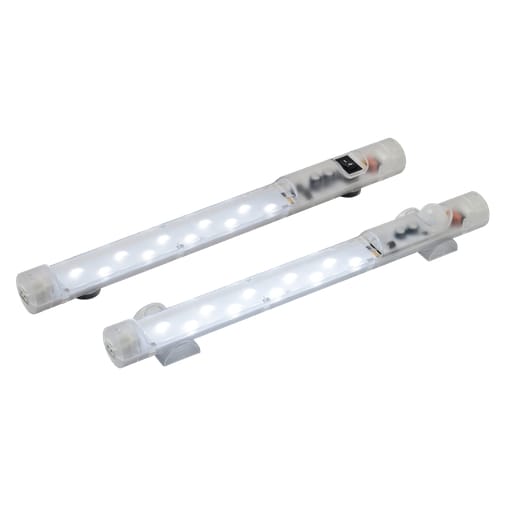

LED light kits provide interior enclosure lighting suitable for remote and darkened enclosure applications. These light kits are light-weight and in a small form factor which are ideal where space is limited. The light can be mechanically fastened with included hardware to maintain enclosure UL listing (up to Type 4X), or can be magnetically attached to flat steel surfaces. The lights have auto-sensing circuitry (AC voltage 90 VAC to 265 VAC and DC voltage 20 VDC to 60 VDC). Option of a manual on/off switch or a PIR motion sensor is available. Features: 400 lumen at 120-degree angle of illumination; 6000-7000K color temperature; Power consumption for all models is 5 watts; The power output allows up to 10 lights to be connected to each other (daisy chain); Input and output connectors are included (16 AWG); Operating temperature -22 F to 140 F (-30 C to 60 C); Life expectancy of 60,000 hours at 68 F (20 C) under specifications; Protection Class II (double insulated)
