nVent Hoffman - Hoffman PDS206 Solid Doors, fits 2000x 600mm, Lt Gray, Steel

CopyCopy
nVent Hoffman - Hoffman PDS206 Solid Doors, fits 2000x 600mm, Lt Gray, Steel

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510949501

  • Applications - Controls and Drives, Power Distribution

  • Catalog Number - PDS206

  • Color - Light Gray

  • ERP_productname - HOFF PDS206 SOLID DOOR 2000X600MM MFG ITEM 94950

Packaging

  • 1 ea

EAN

00783510949501

Part #

206537

Catalog #

PDS206

Commercial reference

PDS206

12-Digit UPC:

783510949501

Applications:

Controls and Drives, Power Distribution

Catalog Number:

PDS206

Color:

Light Gray

ERP_productname:

HOFF PDS206 SOLID DOOR 2000X600MM MFG ITEM 94950

Family Brand Name:

nVent Hoffman

Finish:

Powder Coated

Heights:

3 Inch

Length:

79 Inch

Material:

Steel

Size:

fits 2000x600mm

Sub Brand:

ProLine

Type:

Doors and Door Accessories

Widths:

25.00 in

SoneparProductId:

SKU_US_59122766

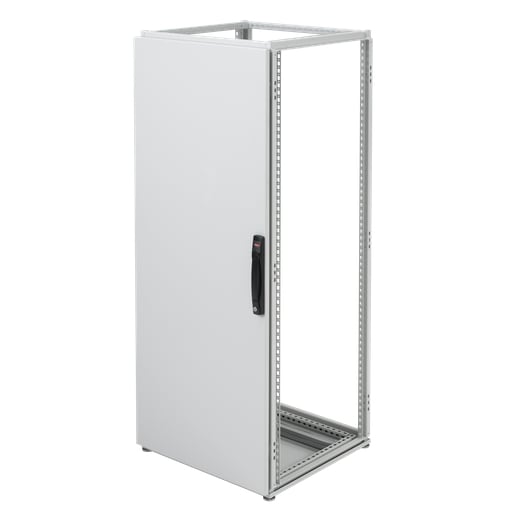

Solid Doors include a removable door bar system on doors taller than 700 mm and wider than 400 mm. Hinge side is reversible. A flush bezel latch operates the 3-point latching system. Doors for 700-mm frames have 2-point latching. Hidden hinges (130-degree swing) permit attachment to the front or back of each enclosure frame. The use of a side-door adapter or a cable entry cabinet allows doors to be attached to the sides of the enclosure frame. Features: EMC doors are finished with paint over plated surfaces; Optional data pockets, door stops, grounding kits and 180-degree hinges are available; Hinges have easy slide retained hinge pins; Door gasket is foam-in-place urethane to provide a resilient, seamless seal; Two grounding studs are furnished. All mounting hardware is included
