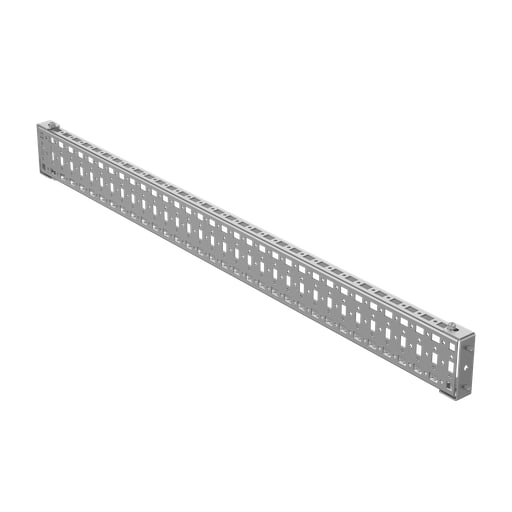

nVent Hoffman - Hoffman PGH3S5 Grid Straps, 342x 75mm, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510905507
Applications - Controls and Drives; Power Distribution
Catalog Number - PGH3S5
Color - Unpainted
ERP_productname - HOFF P-GH3S5 500MM THREE HOLE STRAP MFG ITEM 90550
Packaging
1 ea
EAN
00783510905507
Part #
208059
Catalog #
P-GH3S5
Commercial reference
P-GH3S5
12-Digit UPC:
783510905507
Applications:
Controls and Drives; Power Distribution
Catalog Number:
PGH3S5
Color:
Unpainted
ERP_productname:
HOFF P-GH3S5 500MM THREE HOLE STRAP MFG ITEM 90550
Family Brand Name:
nVent Hoffman
Finish:
Galvanized
Heights:
5-1/2 Inch
Length:
20-3/4 Inch
Material:
Steel
Size:
342 x 75 mm
Sub Brand:
ProLine
Type:
3-Row
Widths:
5.50 in
SoneparProductId:
SKU_US_58214046
The Grid Straps are provided with specially designed rectangular holes to allow the use of cage nuts or front-loading cage nuts. Mounting holes are provided on 25-mm centers. Grid Straps are available with either 1 row or 3 rows of holes and are furnished in pairs. Mounting hardware to attach Grid Straps to the frame or to other Grid Straps is included. Features: Can be mounted vertically between horizontally mounted Grid Straps; Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame; Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame; When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation); Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
