nVent Hoffman - Hoffman T200216G155 T-SERIES Compact Outdoor, SS Type 304

CopyCopy

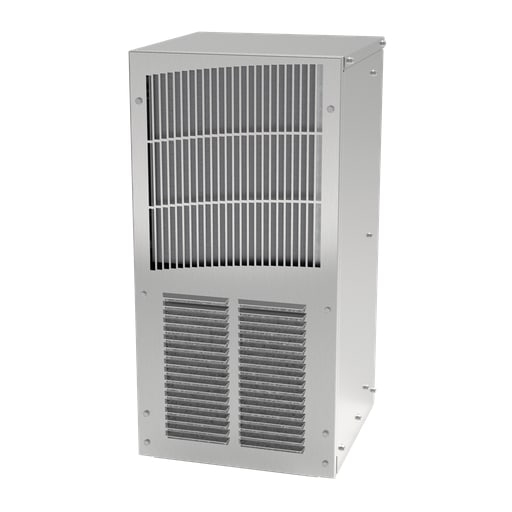

nVent Hoffman - Hoffman T200216G155 T-SERIES Compact Outdoor, SS Type 304

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510251741

  • Amperage - 7 Amp

  • Applications - Controls and Drives, Corrosive Environments, Power Distribution

  • Catalog Number - T200216G155

  • Color - RAL 7035 Light Gray

Packaging

  • 1 ea

EAN

00783510251741

Part #

223185

Catalog #

T200216G155

Commercial reference

T200216G155

12-Digit UPC:

783510251741

Amperage:

7 Amp

Applications:

Controls and Drives, Corrosive Environments, Power Distribution

Catalog Number:

T200216G155

Color:

RAL 7035 Light Gray

Depths:

9.9 Inch

ERP_productname:

HOFF T200216G155 AIR COND T20 0216 G155 MFG ITEM 25174

Enclosure Rating:

3R, 4, 4X, 12

Enclosure Type:

NEMA Type 3R, 4, 4X, 12

Family Brand Name:

nVent Hoffman

Finish:

Brushed

Heights:

20 Inch

Length:

13-3/4 Inch

Material:

Stainless Steel

Max Current:

7.0 A

Mounting Type:

Fully Recessed

Sub Brand:

T-Series

Type:

Outdoor

Voltage:

115

Wattage:

586 Watt

Widths:

10 in

SoneparProductId:

SKU_US_58126160

T-Series Compact Outdoor Air Conditioners provide a compact footprint to minimize real estate and maximize capacity. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance. Features: Compact footprint to minimize real estate and maximize capacity; Models for 115, 230 and 460 VAC power input; Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C; UL Listed to save customers time and money with agency approvals (some models UL recognized); Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments; Reliable mechanical thermostat on enclosure side of the unit; Dual condenser-side air movers for performance redundancy; Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance; Exterior and fully recessed mounting options on many models; Easy-mount flanges for simple installation; Every unit functionally tested before shipping; Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant; Mounting hardware, gaskets and user manual furnished with the unit; Item T150116G120 is only for indoor purpose
