nVent Hoffman - Hoffman T431026G150 T-SERIES Mid-size Outdoor, 2" x 2" x 2", Gray, Steel

CopyCopy
nVent Hoffman - Hoffman T431026G150 T-SERIES Mid-size Outdoor, 2" x 2" x 2", Gray, Steel

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510231385

  • Amperage - 9 Amp

  • Applications - Controls and Drives; Power Distribution

  • Catalog Number - T431026G150

  • Color - Gray

Packaging

  • 1 ea

EAN

00783510231385

Part #

498838

Catalog #

T431026G150

Commercial reference

T431026G150

12-Digit UPC:

783510231385

Amperage:

9 Amp

Applications:

Controls and Drives; Power Distribution

Catalog Number:

T431026G150

Color:

Gray

Depths:

10.9 Inch

ERP_productname:

HOFF T431026G150 AIR COND T43-1026-G150

Family Brand Name:

nVent Hoffman

Finish:

Powder Coated

Heights:

43 Inch

Length:

13-1/2 Inch

Material:

Steel

Max Current:

9 A

Sub Brand:

T-Series

Type:

Air Conditioners

Voltage:

250 Volt

Wattage:

3075 Watt

Widths:

15.75 in

SoneparProductId:

SKU_US_58154679

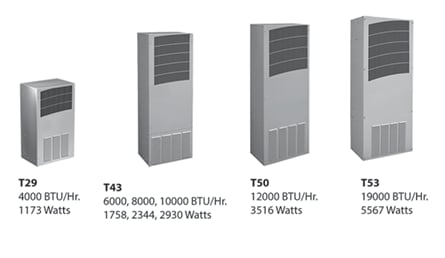

T-Series Mid-Size Air Conditioners keep equipment cool at a range of heat loads. Their discreet design helps them to blend into blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance. Features: Stock models equipped with head pressure control for low-ambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package; R134A or R-407C earth-friendly refrigerant; Models for 115, 230 and 460 VAC power input; UL Listed to save customers time and money with agency approvals (some models UL recognized); Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C; Exterior and fully recessed mounting options on many models; Compact footprint to minimize real estate and maximize capacity; Reliable mechanical thermostat on enclosure side of the unit; Dual condenser-side air movers for performance redundancy; Painted galvanized sheet-metal cover for rugged factory and outdoor environments; Easy-mount flanges for simple installation; Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance; Mounting hardware, gaskets and user manual furnished with the unit; Every unit functionally tested before shipping; Standard Outdoor Air Conditioner models also include:; Telcordia GR-487 capable; Thermostat; Corrosion-resistant components; Malfunction switch; Compressor heater; Head pressure control; Enclosure heater - Notes: ProAir Harsh Environment air conditioner may be more appropriate. Refer to ProAir Harsh Environment air conditioner catalog section. Consult the Factory for availability and catalog number.; Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.
