nVent Hoffman - Hoffman VL22 SYSPEND VL-Motion Arm, Type 4, 6.72x 25.5x 3.5, Gray, Aluminum

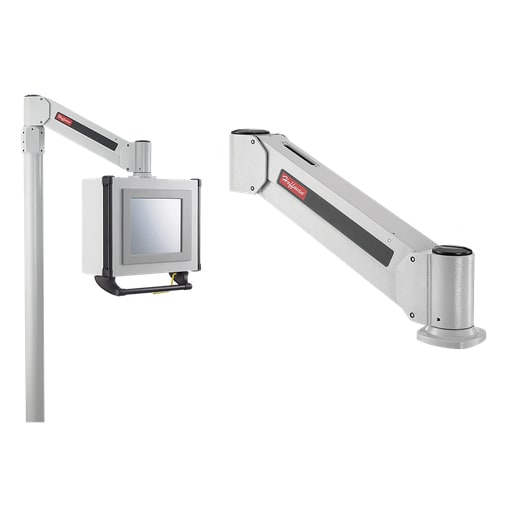

Syspend VL-Motion Arm is a vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. Gas spring counterbalance can be adjusted for loads of 30-100 lb. Release handle and locking mechanism are ideal for applications where machine vibration is a concern. Release handle is included in the arm and is required to operate the arm. Features: Field-adjustable internal gas spring counterbalance supports loads of 30-100 lbs.; Gas springs are set to maximum pressure (100 lb. load) and lifting force can be reduced through a sealed access cap in the top of the arm; Lifting force cannot be increased once spring pressure is reduced; Provides 13 in. of vertical height adjustment; Release handle automatically locks arm in place when repositioned vertically; Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately); 1.4-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables; Gasketed mounting surfaces at both ends of arm maintain seal integrity; Enclosure and arm can be swiveled 320 degrees; Mounting adapter is required with options of wall-mount, machine-top-mount and post-top-mount; Optional floorpost available
