nVent Hoffman - NVENT HOF A72XD3418SSFTCLP 72x34x18

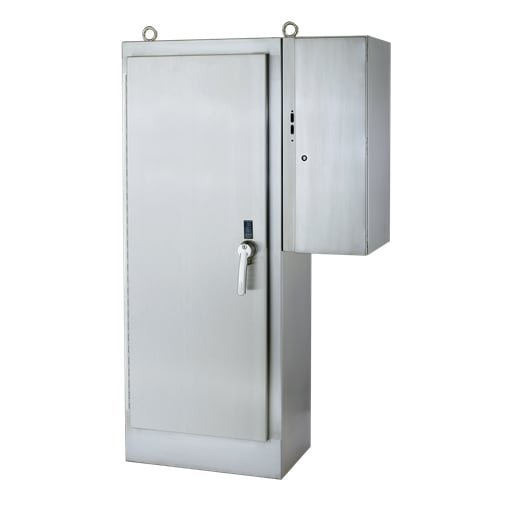

Sequestr, External Disconnect enclosures package mitigates arc-flash occurrences. This Sequestr External Disconnect Package 1-Door Type 4X, A72XD3418SSFTCLP item measures 72x34x18in with material of SS304 finish Brushed. Features: Package includes a main enclosure and a Sequestr box.; Main enclosure 12 gauge Type 304 stainless steel; Sequestr enclosure is 14 gauge Type 304 stainless steel; Seams continuously welded and ground smooth; Interlocks doors of main control cabinet when disconnect switch is powered ON; Mechanical interlock on main control enclosure activated by master door, preventing slave door from being opened first; Provision for pass-through power into the main enclosure; Preferred Disconnect cutout; Quarter-turn, screwdriver slot latch on Sequestr Enclosure; Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors; Concealed, easy-to-remove hinges; Grounding studs on body; Bonding provision on door; Conductive back panel included in Sequestr External Disconnect Enclosure; Optional back panel for main control cabinet for maximum ordering flexibility; Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
