nVent Hoffman - NVENT HOF ARF06030R5 Rain hood 600x
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510450021
Applications - Controls and Drives; Factory Automation and Process Control
Catalog Number - ARF06030R5
Color - Gray
Depths - 11.81 Inch
Packaging
1 ea
EAN
00783510450021
Part #
294760
Catalog #
ARF06030R5
Commercial reference
ARF06030R5
12-Digit UPC:
783510450021
Applications:
Controls and Drives; Factory Automation and Process Control
Catalog Number:
ARF06030R5
Color:
Gray
Depths:
11.81 Inch
ERP_productname:
HOFF ARF06030R5 RAIN HOOD 600X300 MFG ITEM 45002
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
2.68 Inch
Length:
25 Inch
Material:
Steel
Type:
IEC Enclosure Accessories
Widths:
14.00 in
SoneparProductId:
SKU_US_285913909

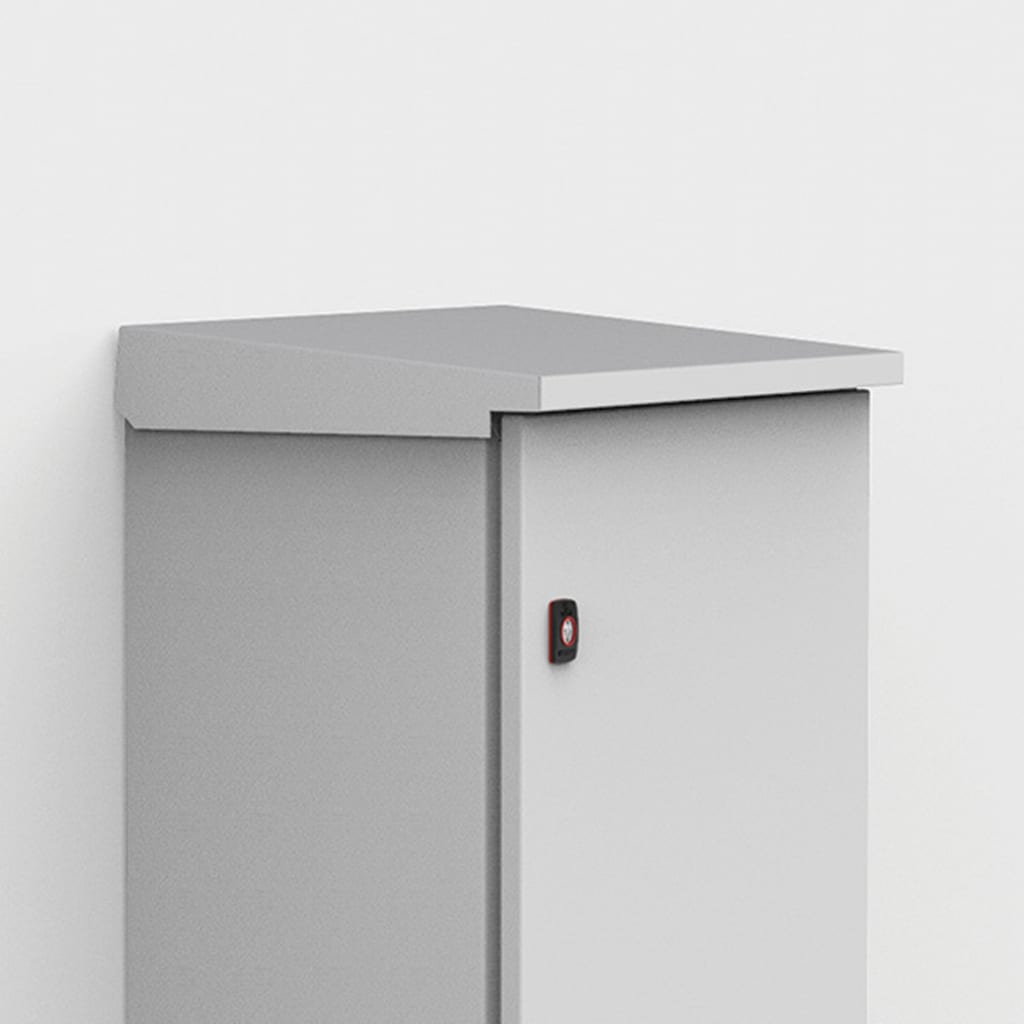

Rain Hoods quickly installs onto enclosures and is slightly sloped with a dripstrip. This Rain Hood, ARF, ARF06030R5 item measures 2.68x23.62x11.81 inches with a material of Mild Steel colored Light Gray. Features: Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.; Material: 1.5 mm mild steel.; Finish: RAL 7035 structured powder coating.; Pack quantity: 1 rain hood with mounting accessories.; Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180. MMH hinges.
