nVent Hoffman - NVENT HOF CDSC483816SS6R 316L SS Cn

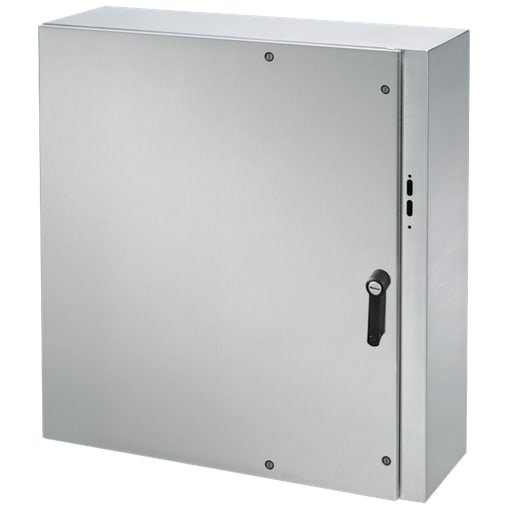

For use in disconnect applications that require larger controls and stylized design features. This Concept Wallmount Disconnect 1/4-Turn Latch Type 4X, CDSC483816SS6R item measures 48x38x16in with material of SS316 finish Brushed. Features: Seams continuously welded and ground smooth; External-formed 90-degree body flange; Integral door alignment device to properly align door and gasket to body flange; Holes provided in body for mounting disconnect operating handle and operating mechanism; Panel mounting studs fit optional Concept panels and other accessories; Mounting holes in back of body for direct mounting or for optional external mounting brackets; Stainless steel hidden hinges; Standard full-access door opening; Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins; Provisions on door for optional high-impact thermoplastic data pocket; Seamless foam-in-place gasket; Door latching system: latch installed on door with interlock mechanism on the disconnect handle for added safety; four quarter-turn latches also included; Adjustable door interlock bracket fastened to door; Unique integrated door handle with tool-to-open feature and padlock option installed on; Self-grounding latch system with double seal; Bonding provision on door; grounding stud on body
