nVent Hoffman - NVENT HOF MCS20048R5 Comb Enc 1Dr n

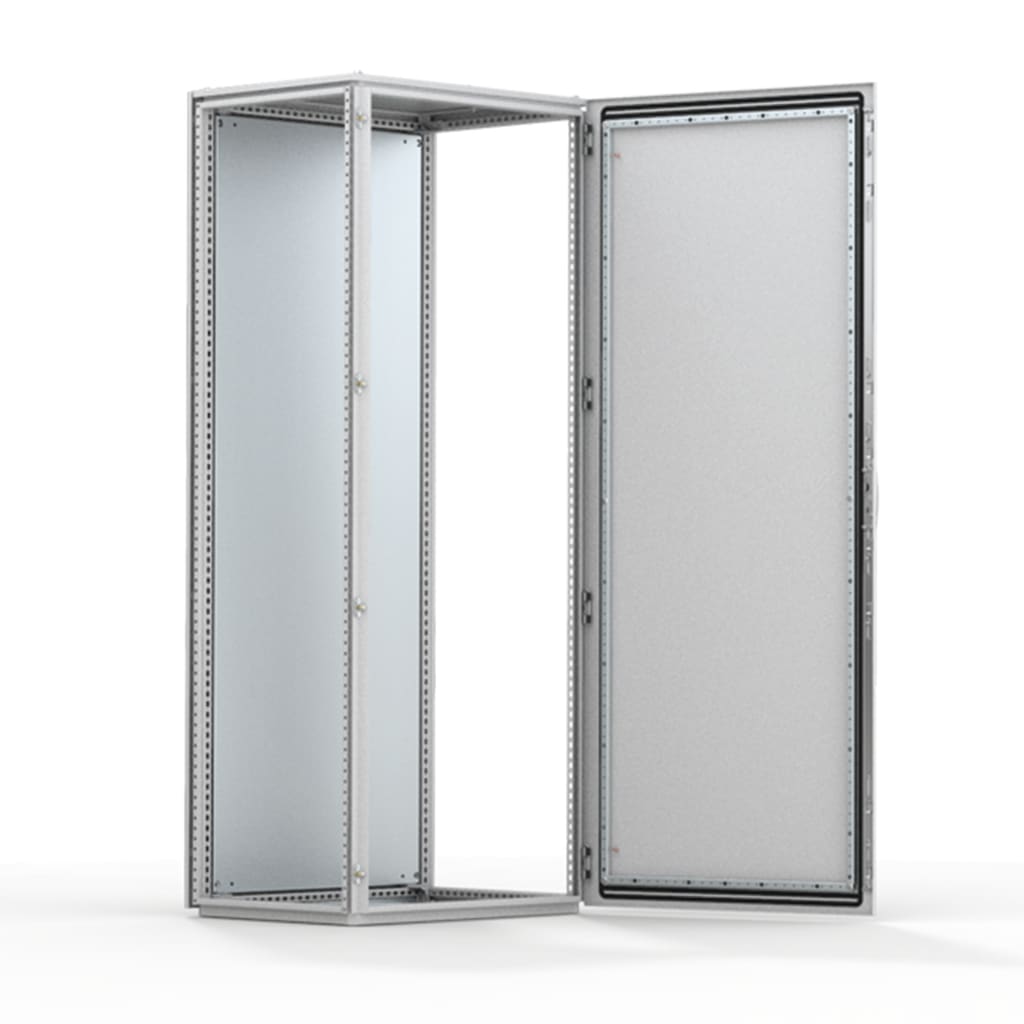

Single-door, combinable, floor-standing enclosure range, MCS, with IP 55/Type 12 rating. This Modular Single Door, MCS, MCS20048R5 item measures 78.74x15.75x31.50 inches with a material of Mild Steel. Features: Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.; Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.; Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.; Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. RD version comes with rear door instead of rear panel.; Side panels: Supplied as an accessory.; Roof panel: Removable.; Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.; Bottom plates: Consists of three or four (D>600) pieces.; Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.; Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.; Finish: RAL 7035 structured powder coating.; Protection: Complies with IP 55 | TYPE 12 | IK 10.; Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.; Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame. For 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included. For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
