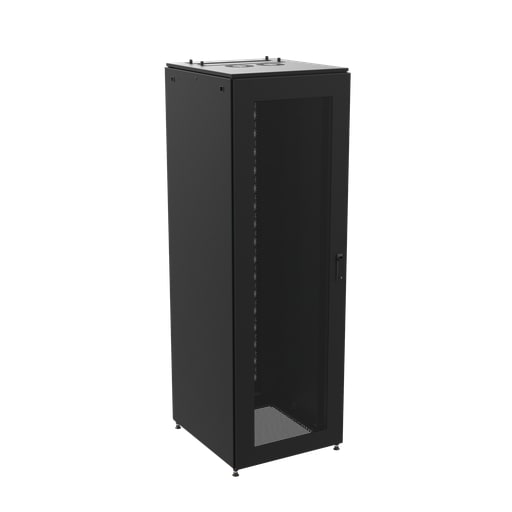

nVent Hoffman - NVENT HOF PS1C23812B PROLINE S1 230

CopyCopy
nVent Hoffman - NVENT HOF PS1C23812B PROLINE S1 230

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510392284

  • Applications - Datacom and Telecom Equipment; Networking, Storage and Data Center

  • Catalog Number - PS1C23812B

  • Color - Black

  • Depths - 47.17 Inch

Packaging

  • 1 ea

EAN

00783510392284

Part #

193149

Catalog #

PS1C23812B

Commercial reference

PS1C23812B

12-Digit UPC:

783510392284

Applications:

Datacom and Telecom Equipment; Networking, Storage and Data Center

Catalog Number:

PS1C23812B

Color:

Black

Depths:

47.17 Inch

ERP_productname:

HOFF PS1C23812B PROLINE S1 COMMUNICATIONS CABINET 48RU 91.06"H X 31.81"W X 47.17"D, FRONT MFG ITEM 39228 DOORS & SIDE PANELS, LEVELERS, 3000 LBS LOAD RATING, BLACK

Family Brand Name:

nVent Hoffman

Finish:

Powder Coated

Frame:

Yes

Heights:

91.06 Inch

Length:

47.16 Inch

Material:

Steel

Sub Brand:

ProLine

Type:

Data Networking Freestanding Cabinets

Widths:

21.81 in

SoneparProductId:

SKU_US_285922167

Proline S1 Cabinets are an economical networking/server cabinet suited for variety of applications. This ProLine S1 Cabinet, PS1C23812B item measures 2350x800x1200mm with a material of Steel colored Black. Features: All doors have toolless hinges that allow the doors to easily be removed or reversed in the field; All doors have ergonomic opening, keylocking handles; Easy-to-remove side panels with keylocking latch; Front and rear doors are fully perforated to allow for maximum air flow; Top accepts additional cooling fans (2 x 6-in. fans) with integral finger guard prefabricated in place; Top has sliding gland plate to accommodate large cable egress capacity; Combination foot and adjustable leveler in each cabinet corner; Open base for easy cable entrance; Rack angles are fully adjustable front to rear, easily converting between tapped or square configurations; Rack angles able to mount off-centered on 700 and 800mm wide models; Rack angles able to configure at 23. spacing on 700 and 800mm wide models; Perforated doors meet or exceed manufactures open space/air flow ventilation requirements
