nVent Hoffman - NVENT HOF SY323716A Alum HMI Door 3
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510341022
Applications - Controls and Drives
Catalog Number - SY323716A
Depths - 7.09 Inch
ERP_productname - HOFF SY323716A ALUM HMI DOOR 325X375X166 MFG ITEM 34102
Packaging
1 ea
EAN
00783510341022
Part #
187012
Catalog #
SY323716A
Commercial reference
SY323716A
12-Digit UPC:
783510341022
Applications:
Controls and Drives
Catalog Number:
SY323716A
Depths:
7.09 Inch
ERP_productname:
HOFF SY323716A ALUM HMI DOOR 325X375X166 MFG ITEM 34102
Family Brand Name:
nVent Hoffman
Finish:
Anodized
Heights:
12 Inch
Length:
23.8 Inch
Material:
Aluminum
Type:
HMI Enclosure Systems
Widths:
19.69 in
SoneparProductId:
SKU_US_285922564

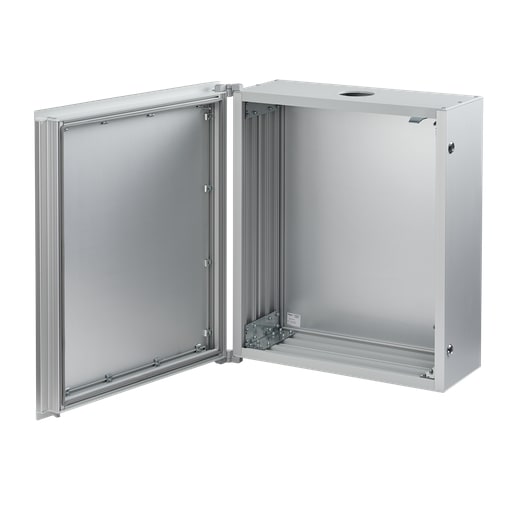

A light-weight ergonomic Aluminum HMI enclosure with modern design for pendant or pedestal mounting. This Syspend Aluminum HMI Enclosure Type 12, SY323716A item measures 325x375x166mm with a material of Aluminum colored Lt Gray. Features: Extruded, single-walled aluminum construction for enhanced ergonomics and heat dissipation; Body is available hinged or solid with hinged back-plate for a variety of configurations; Integrated side handles for clean appearance and ease of operation; Integrated mounting extrusions for installing components or din rail directly inside the enclosure using brackets or spring nuts; Front plate installed into enclosure; Pre-cut mounting holes compatible with support arm systems; pedestal mounting when enclosure is inverted; Oil-resistant gasket attached with oil-resistant adhesive
