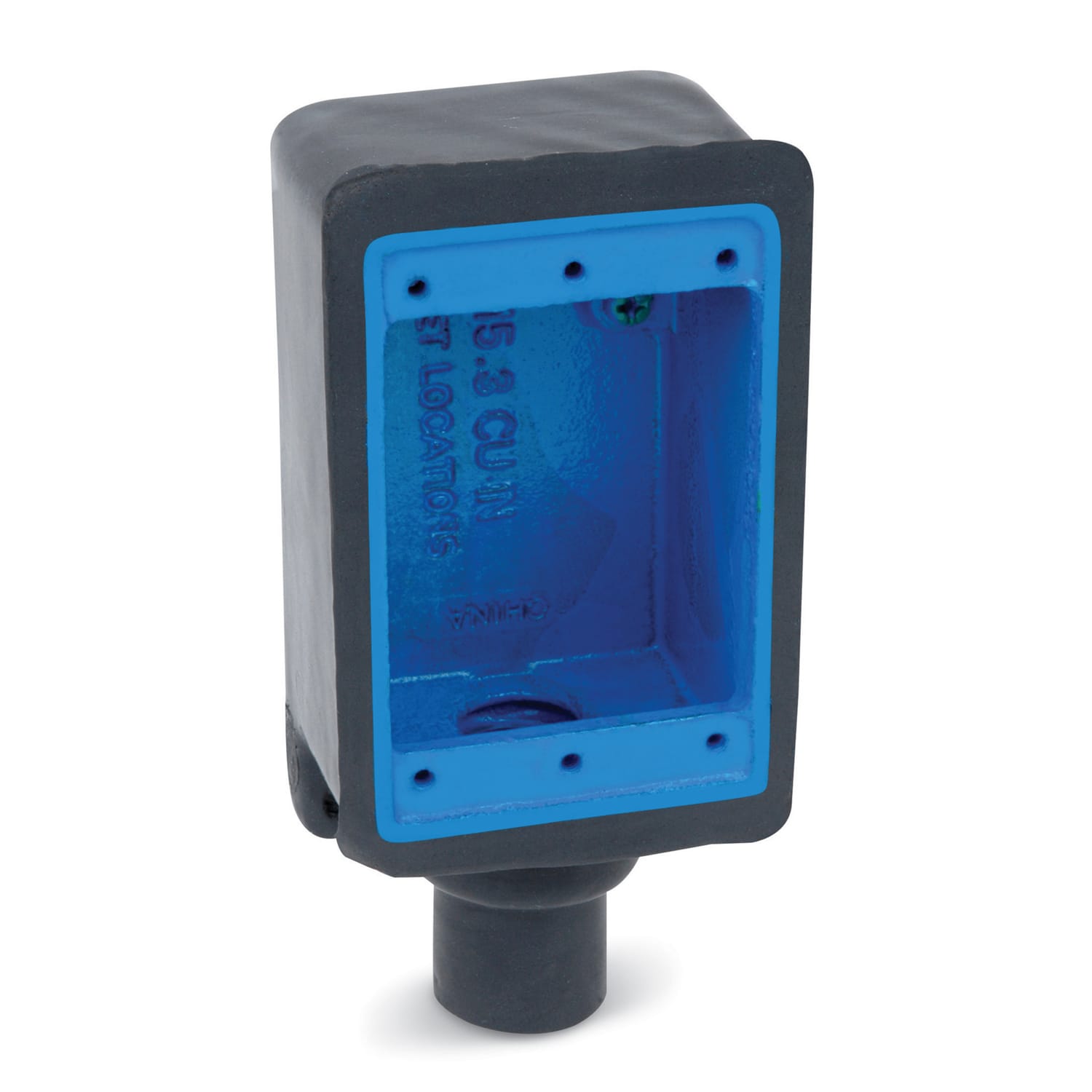

Ocal / Thomas & Betts - Ocal FD2-G 3/4" 1-Gang PVC-Coated FD Dead-End Box, Deep - Gray
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508376789
Applications - To Accommodate Wiring Devices, Act as Pull Boxes for Conductors, Provide Openings to Make Splices and Taps
Catalog Number - FD2-G
Color - Dark Gray
ERP_productname - OCAL FD2G
Packaging
1 ea
EAN
00704508376789
Part #
252467
Catalog #
FD2G
Commercial reference
FD2G
12-Digit UPC:
704508376789
Applications:
To Accommodate Wiring Devices, Act as Pull Boxes for Conductors, Provide Openings to Make Splices and Taps
Catalog Number:
FD2-G
Color:
Dark Gray
ERP_productname:
OCAL FD2G
Family Brand Name:
Thomas & Betts (T&B)
Finish:
PVC Coated
Material:
Iron
Number of Gangs:
1 Gang
Size:
3/4 in
Sub Brand:
Ocal®
Type:
Dead-End Deep
SoneparProductId:
SKU_US_25377660
PVC Double-Coated Dead End Device Box, FD Series, Single Gang, Deep Style, Pipe Size 3/4 Inch/21 Metric, Iron Alloy, Dark Gray Features: Coated with a nominal .002 in. (2 mil) blue urethane on both the interior and exterior before PVC coating is applied; Nominal .040 in. (40 mil) PVC coating bonded to exterior; Pressure sealing sleeves protect connections with conduit; Cast class 30 gray iron alloy boxes - Notes: Dimensions are of uncoated fittings; Metric size designator (ANSI C80. 1-1994) - Application: To accommodate wiring devices; Provide openings to make splices and taps; Act as pull boxes for conductors; Provide access to conductors for maintenance and future system changes
