Ocal / Thomas & Betts - Ocal HUB1-G 1 Inch Ocal Gray Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388164
Applications - To Positively Bond Conduit to Box or Enclosure
Catalog Number - HUB1-G
Color - Dark Gray
ERP_productname - OCAL HUB1-G 1-IN PVC COATED HUB
Packaging
1 ea
EAN
00704508388164
Part #
151438
Catalog #
HUB1-G
Commercial reference
HUB1-G
12-Digit UPC:
704508388164
Applications:
To Positively Bond Conduit to Box or Enclosure
Catalog Number:
HUB1-G
Color:
Dark Gray
ERP_productname:
OCAL HUB1-G 1-IN PVC COATED HUB
Family Brand Name:
ABB
Finish:
PVC Coated
Material:
Zinc
Size:
1 in
Sub Brand:
Ocal®
Trade Size:
1 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_57853504

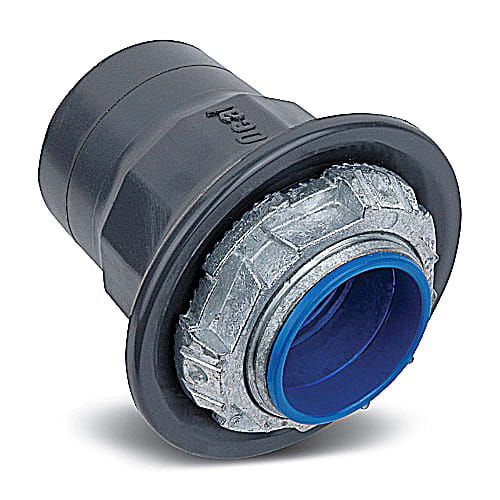

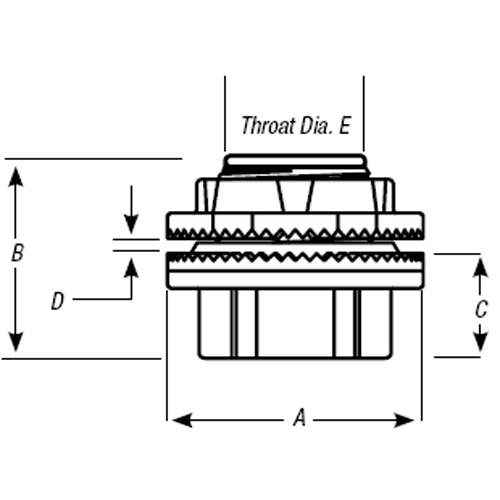

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1 Inch/27 Metric, Overall Diameter 2.00 Inch/50.80 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.00 Inch/25.40 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Hexagonal body and locknut design.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Pressure sealing sleeves to protect the connection.; Insulated throat and sharper and deeper teeth.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Innovative sealing ring and groove. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
