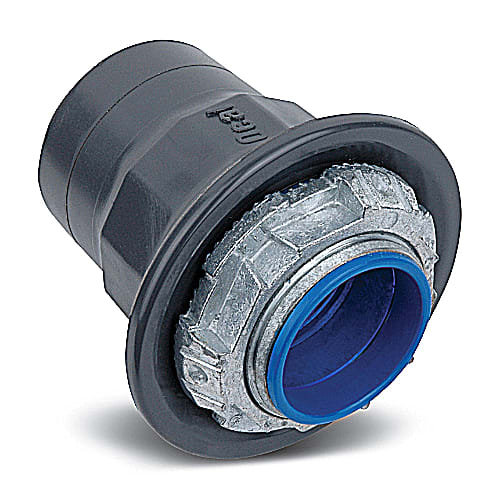

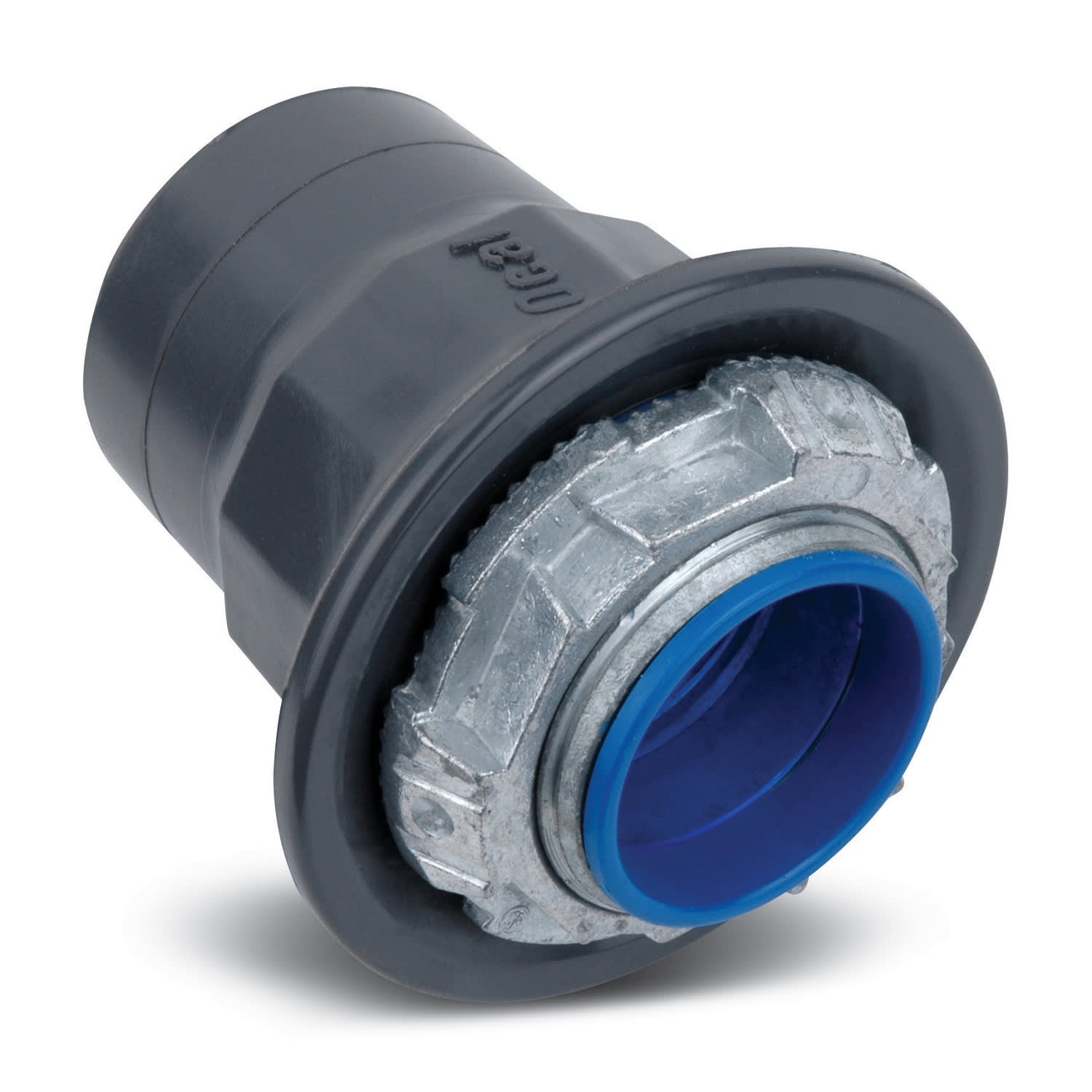

Ocal / Thomas & Betts - Ocal HUB2-G 2 Inch Ocal Gray Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388461
Applications - To Positively Bond Conduit to Box or Enclosure
Catalog Number - HUB2-G
Color - Dark Gray
ERP_productname - OCAL HUB2-G PVC CTD ZINC HUB CONN 2IN DGRAY
Packaging
1 ea
EAN
00704508388461
Part #
179098
Catalog #
HUB2-G
Commercial reference
HUB2-G
12-Digit UPC:
704508388461
Applications:
To Positively Bond Conduit to Box or Enclosure
Catalog Number:
HUB2-G
Color:
Dark Gray
ERP_productname:
OCAL HUB2-G PVC CTD ZINC HUB CONN 2IN DGRAY
Family Brand Name:
ABB
Finish:
PVC Coated
Material:
Zinc
Size:
2 in
Sub Brand:
Ocal®
Trade Size:
2 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_57922845

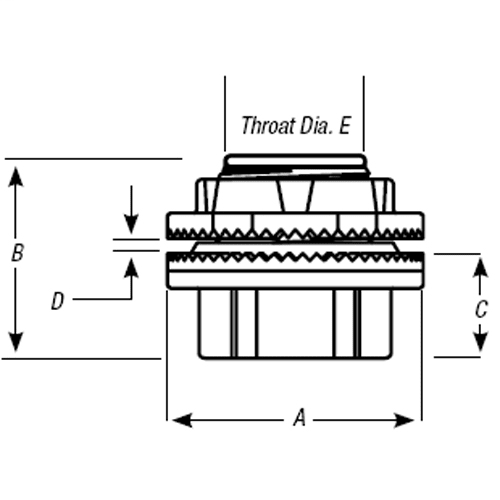

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 2 Inch/53 Metric, Overall Diameter 3.25 Inch/82.55 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.97 Inch/50.04 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Innovative sealing ring and groove.; Pressure sealing sleeves to protect the connection.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Hexagonal body and locknut design.; Insulated throat and sharper and deeper teeth. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
